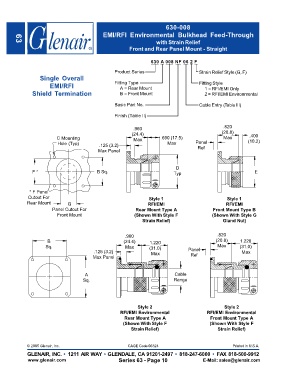

Page 560 - Circular Connector Backshells and Accessories

630-008
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief
6
3
Front and Rear Panel Mount - Straight
630 A 008 NF 06 2 F

Product Series Strain Relief Style (G, F)
Single Overall
EMI/RFI Fitting Type Fitting Style
1 = RFI/EMI Only
A = Rear Mount
Shield Termination B = Front Mount 2 = RFI/EMI Environmental
Basic Part No. Cable Entry (Table III)

Finish (Table II)

.960 .820
(24.4) (20.8) .400
C Mounting Max .690 (17.5) Max
Hole (Typ) .125 (3.2) Max Panel (10.2)
Max Panel Ref

D
F * B Sq. Typ E

* F Panel
Cutout For Style 1 Style 1
Rear Mount G RFI/EMI RFI/EMI
Panel Cutout For Rear Mount Type A Front Mount Type B
Front Mount (Shown With Style F (Shown With Style G
Strain Relief) Gland Nut)

.960 .820
B (24.4) 1.220 (20.8) 1.220
Sq. Max (31.0) Max (31.0)
.125 (3.2) Max Panel Max
Max Panel Ref

A Cable
Sq. Range

Style 2 Style 2
RFI/EMI Environmental RFI/EMI Environmental
Rear Mount Type A Front Mount Type A
(Shown With Style F (Shown With Style F
Strain Relief) Strain Relief)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 10 E-Mail: sales@glenair.com
