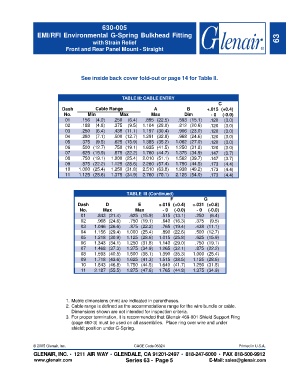

630-005
EMI/RFI Environmental G-Spring Bulkhead Fitting 63
with Strain Relief
Front and Rear Panel Mount - Straight
See inside back cover fold-out or page 14 for Table II.
TABLE III: CABLE ENTRY
C
Dash Cable Range A B +.015 (+0.4)
No. Min Max Max Dim - 0 (-0.0)
01 .156 (4.0) .250 (6.4) .885 (22.5) .593 (15.1) .120 (3.0)
02 .188 (4.8) .375 (9.5) 1.104 (28.0) .812 (20.6) .120 (3.0)
03 .250 (6.4) .438 (11.1) 1.197 (30.4) .906 (23.0) .120 (3.0)
04 .280 (7.1) .500 (12.7) 1.291 (32.8) .968 (24.6) .120 (3.0)
05 .375 (9.5) .625 (15.9) 1.385 (35.2) 1.062 (27.0) .120 (3.0)
06 .500 (12.7) .750 (19.1) 1.635 (41.5) 1.250 (31.8) .120 (3.0)
07 .625 (15.9) .875 (22.2) 1.760 (44.7) 1.375 (34.9) .147 (3.7)
08 .750 (19.1) 1.000 (25.4) 2.010 (51.1) 1.562 (39.7) .147 (3.7)
09 .875 (22.2) 1.125 (28.6) 2.260 (57.4) 1.750 (44.5) .173 (4.4)
10 1.000 (25.4) 1.250 (31.8) 2.510 (63.8) 1.938 (49.2) .173 (4.4)
11 1.125 (28.6) 1.375 (34.9) 2.760 (70.1) 2.125 (54.0) .173 (4.4)
TABLE III (Continued)
F G
Dash D E +.015 (+0.4) +.031 (+0.8)
No. Max Max - 0 (-0.0) - 0 (-0.0)
01 .843 (21.4) .625 (15.9) .515 (13.1) .250 (6.4)
02 .968 (24.6) .750 (19.1) .640 (16.3) .375 (9.5)
03 1.046 (26.6) .875 (22.2) .765 (19.4) .438 (11.1)
04 1.156 (29.4) 1.000 (25.4) .890 (22.6) .500 (12.7)
05 1.218 (30.9) 1.125 (28.6) 1.015 (25.8) .625 (15.9)
06 1.343 (34.1) 1.250 (31.8) 1.140 (29.0) .750 (19.1)
07 1.468 (37.3) 1.375 (34.9) 1.265 (32.1) .875 (22.2)
08 1.593 (40.5) 1.500 (38.1) 1.390 (35.3) 1.000 (25.4)
09 1.718 (43.6) 1.625 (41.3) 1.515 (38.5) 1.125 (28.6)
10 1.843 (46.8) 1.750 (44.5) 1.640 (41.7) 1.250 (31.8)
11 2.187 (55.5) 1.875 (47.6) 1.765 (44.8) 1.375 (34.9)
1. Metric dimensions (mm) are indicated in parentheses.
2. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
3. For proper termination, it is recommended that Glenair 469-001 Shield Support Ring
(page 460-3) must be used on all assemblies. Place ring over wire and under
shield; position under G-Spring.
