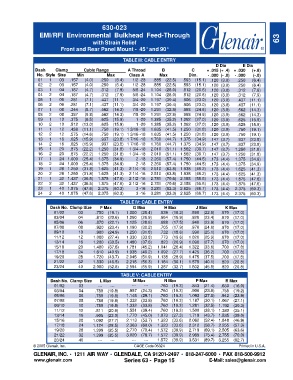

Page 565 - Circular Connector Backshells and Accessories

630-023
EMI/RFI Environmental Bulkhead Feed-Through 63
with Strain Relief
Front and Rear Panel Mount - 45° and 90°

TABLE III: CABLE ENTRY
D Dia E Dia
Dash Clamp Cable Range A Thread B C + .015 (+ .4) + .030 (+.8)
No. Style Size Min Max Class A Max Dim. - .000 (- .0) - .000 (-.0)
01 1 03 .157 (4.0) .250 (6.4) 1/2 -28 .885 (22.5) .593 (15.1) .120 (3.0) .250 (6.4)
02 2 03 .157 (4.0) .250 (6.4) 1/2 -28 .885 (22.5) .593 (15.1) .120 (3.0) .250 (6.4)
03 1 04 .187 (4.7) .312 (7.9) 5/8 -24 1.104 (28.0) .812 (20.6) .120 (3.0) .312 (7.9)
04 2 04 .187 (4.7) .312 (7.9) 5/8 -24 1.104 (28.0) .812 (20.6) .120 (3.0) .312 (7.9)
05 1 06 .281 (7.1) .437 (11.1) 3/4 -20 1.197 (30.4) .906 (23.0) .120 (3.0) .437 (11.1)
06 2 06 .281 (7.1) .437 (11.1) 3/4 -20 1.197 (30.4) .906 (23.0) .120 (3.0) .437 (11.1)
07 1 08 .344 (8.7) .562 (14.3) 7/8 -20 1.291 (32.8) .968 (24.6) .120 (3.0) .562 (14.3)
08 2 08 .387 (9.8) .562 (14.3) 7/8 -20 1.291 (32.8) .968 (24.6) .120 (3.0) .562 (14.3)
09 1 10 .375 (9.5) .625 (15.9) 1 -20 1.385 (35.2) 1.062 (27.0) .120 (3.0) .625 (15.9)
10 2 10 .512 (13.0) .625 (15.9) 1 -20 1.385 (35.2) 1.062 (27.0) .120 (3.0) .625 (15.9)
11 1 12 .438 (11.1) .750 (19.1) 1 3/16 -18 1.635 (41.5) 1.250 (31.8) .120 (3.0) .750 (19.1)
12 2 12 .575 (14.6) .750 (19.1) 1 3/16 -18 1.635 (41.5) 1.250 (31.8) .120 (3.0) .750 (19.1)
13 1 16 .625 (15.9) .937 (23.8) 1 7/16 -18 1.760 (44.7) 1.375 (34.9) .147 (3.7) .937 (23.8)
14 2 16 .625 (15.9) .937 (23.8) 1 7/16 -18 1.760 (44.7) 1.375 (34.9) .147 (3.7) .937 (23.8)
15 1 20 .875 (22.2) 1.250 (31.8) 1 3/4 -18 2.010 (51.1) 1.562 (39.7) .147 (3.7) 1.250 (31.8)
16 2 20 .875 (22.2) 1.250 (31.8) 1 3/4 -18 2.010 (51.1) 1.562 (39.7) .147 (3.7) 1.250 (31.8)
17 1 24 1.000 (25.4) 1.375 (34.9) 2 -18 2.260 (57.4) 1.750 (44.5) .173 (4.4) 1.375 (34.9)
18 2 24 1.000 (25.4) 1.375 (34.9) 2 -18 2.260 (57.4) 1.750 (44.5) .173 (4.4) 1.375 (34.9)
19 1 28 1.250 (31.8) 1.625 (41.3) 2 1/4 -16 2.510 (63.8) 1.938 (49.2) .173 (4.4) 1.625 (41.3)
20 2 28 1.250 (31.8) 1.625 (41.3) 2 1/4 -16 2.510 (63.8) 1.938 (49.2) .173 (4.4) 1.625 (41.3)
21 1 32 1.437 (36.5) 1.875 (47.6) 2 1/2 -16 2.781 (70.6) 2.188 (55.6) .173 (4.4) 1.875 (47.6)
22 2 32 1.437 (36.5) 1.875 (47.6) 2 1/2 -16 2.781 (70.6) 2.188 (55.6) .173 (4.4) 1.875 (47.6)
23 1 40 1.875 (47.6) 2.375 (60.3) 3 -16 3.281 (83.3) 2.625 (66.7) .173 (4.4) 2.375 (60.3)
24 2 40 1.875 (47.6) 2.375 (60.3) 3 -16 3.281 (83.3) 2.625 (66.7) .173 (4.4) 2.375 (60.3)
TABLE IV: CABLE ENTRY
Dash No. Clamp Size F Max G Max H Max J Max K Max
01/02 03 .750 (19.1) 1.000 (25.4) .639 (16.2) .890 (22.6) .670 (17.0)
03/04 04 .810 (20.6) 1.060 (26.9) .664 (16.9) .920 (23.4) .670 (17.0)
05/06 06 .870 (22.1) 1.125 (28.6) .688 (17.5) .940 (23.9) .670 (17.0)
07/08 08 .920 (23.4) 1.190 (30.2) .705 (17.9) .970 (24.6) .670 (17.0)
09/10 10 .980 (24.9) 1.250 (31.8) .732 (18.6) .990 (25.1) .670 (17.0)
11/12 12 1.080 (27.4) 1.330 (33.8) .773 (19.6) 1.020 (25.9) .670 (17.0)
13/14 16 1.200 (30.5) 1.480 (37.6) .823 (20.9) 1.090 (27.7) .670 (17.0)
15/16 20 1.480 (37.6) 1.781 (45.2) 1.041 (26.4) 1.322 (33.6) .700 (17.8)
17/18 24 1.610 (40.9) 1.938 (49.2) 1.092 (27.7) 1.425 (36.2) .700 (17.8)
19/20 28 1.720 (43.7) 2.045 (51.9) 1.138 (28.9) 1.475 (37.5) .700 (17.8)
21/22 32 1.830 (46.5) 2.218 (56.3) 1.184 (30.1) 1.578 (40.1) .820 (20.8)
23/24 40 2.080 (52.8) 2.594 (65.9) 1.287 (32.7) 1.802 (45.8) .820 (20.8)
TABLE V: CABLE ENTRY
Dash No. Clamp Size L Max M Max N Max P Max R Max
01/02 03 --- --- --- --- .760 (19.3) .843 (21.4) .630 (16.0)
03/04 04 .780 (19.8) .957 (24.3) .760 (19.3) .906 (23.0) .755 (19.2)
05/06 06 .780 (19.8) 1.145 (29.1) .760 (19.3) 1.093 (27.8) .942 (23.9)
07/08 08 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
09/10 10 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
11/12 12 .811 (20.6) 1.551 (39.4) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
13/14 16 .905 (23.0) 1.770 (45.0) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
15/16 20 1.092 (27.7) 2.113 (53.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
17/18 24 1.124 (28.5) 2.363 (60.0) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
19/20 28 1.399 (35.5) 2.770 (70.4) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
21/22 32 1.399 (35.5) 3.020 (76.7) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
23/24 40 --- --- --- --- 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 15 E-Mail: sales@glenair.com
