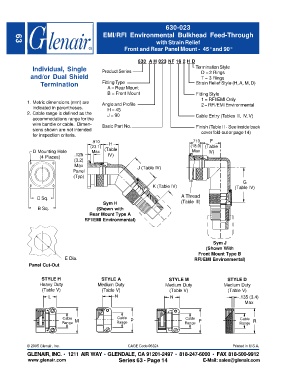

Page 564 - Circular Connector Backshells and Accessories

630-023
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief
63
Front and Rear Panel Mount - 45° and 90°

630 A H 023 NF 16 2 H D
Individual, Single Product Series Termination Style
and/or Dual Shield D = 2 Rings
T = 3 Rings
Termination Fitting Type Strain Relief Style (H, A, M, D)
A = Rear Mount
B = Front Mount Fitting Style
1 = RFI/EMI Only
1. Metric dimensions (mm) are
Angle and Profile 2 = RFI/EMI Environmental
indicated in parentheses. H = 45°
2. Cable range is defined as the
J = 90° Cable Entry (Tables III, IV, V)
accommodations range for the
wire bundle or cable. Dimen-
Basic Part No. Finish (Table II - See inside back
sions shown are not intended cover fold-out or page 14)
for inspection criteria.
.910 H .710 F
(23.1) (18.0) (Table
D Mounting Hole Max (Table Max IV)
(4 Places) .125 IV)
(3.2)
Max J (Table IV)
Panel
(Typ)
G
K (Table IV) (Table IV)
A Thread
C Sq.
Sym H (Table III)
B Sq. (Shown with
Rear Mount Type A
RFI/EMI Environmental)

Sym J
(Shown With
Front Mount Type B
E Dia. RFI/EMI Environmental)
Panel Cut-Out

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table V) (Table V) (Table V) (Table V)
L N N .135 (3.4)
Max

Cable M Cable P Cable Cable
Range Range Range P Range R

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 14 E-Mail: sales@glenair.com
