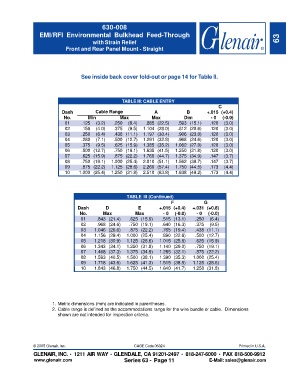

Page 561 - Circular Connector Backshells and Accessories

630-008
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief 63
Front and Rear Panel Mount - Straight

See inside back cover fold-out or page 14 for Table II.

TABLE III: CABLE ENTRY
C
Dash Cable Range A B +.015 (+0.4)
No. Min Max Max Dim - 0 (-0.0)
01 .125 (3.2) .250 (6.4) .885 (22.5) .593 (15.1) .120 (3.0)
02 .156 (4.0) .375 (9.5) 1.104 (28.0) .812 (20.6) .120 (3.0)
03 .250 (6.4) .438 (11.1) 1.197 (30.4) .906 (23.0) .120 (3.0)
04 .280 (7.1) .500 (12.7) 1.291 (32.8) .968 (24.6) .120 (3.0)
05 .375 (9.5) .625 (15.9) 1.385 (35.2) 1.062 (27.0) .120 (3.0)
06 .500 (12.7) .750 (19.1) 1.635 (41.5) 1.250 (31.8) .120 (3.0)
07 .625 (15.9) .875 (22.2) 1.760 (44.7) 1.375 (34.9) .147 (3.7)
08 .750 (19.1) 1.000 (25.4) 2.010 (51.1) 1.562 (39.7) .147 (3.7)
09 .875 (22.2) 1.125 (28.6) 2.260 (57.4) 1.750 (44.5) .173 (4.4)
10 1.000 (25.4) 1.250 (31.8) 2.510 (63.8) 1.938 (49.2) .173 (4.4)

TABLE III (Continued)
F G
Dash D E +.015 (+0.4) +.031 (+0.8)
No. Max Max - 0 (-0.0) - 0 (-0.0)
01 .843 (21.4) .625 (15.9) .515 (13.1) .250 (6.4)
02 .968 (24.6) .750 (19.1) .640 (16.3) .375 (9.5)
03 1.046 (26.6) .875 (22.2) .765 (19.4) .438 (11.1)
04 1.156 (29.4) 1.000 (25.4) .890 (22.6) .500 (12.7)
05 1.218 (30.9) 1.125 (28.6) 1.015 (25.8) .625 (15.9)
06 1.343 (34.1) 1.250 (31.8) 1.140 (29.0) .750 (19.1)
07 1.468 (37.3) 1.375 (34.9) 1.265 (32.1) .875 (22.2)
08 1.593 (40.5) 1.500 (38.1) 1.390 (35.3) 1.000 (25.4)
09 1.718 (43.6) 1.625 (41.3) 1.515 (38.5) 1.125 (28.6)
10 1.843 (46.8) 1.750 (44.5) 1.640 (41.7) 1.250 (31.8)

1. Metric dimensions (mm) are indicated in parentheses.
2. Cable range is defined as the accommodations range for the wire bundle or cable. Dimensions
shown are not intended for inspection criteria.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 11 E-Mail: sales@glenair.com
