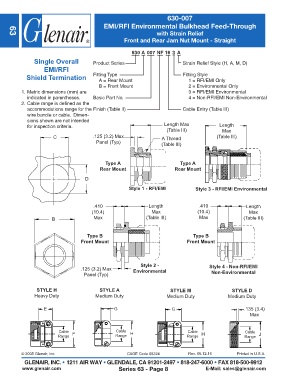

Page 558 - Circular Connector Backshells and Accessories

630-007
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief
63
Front and Rear Jam Nut Mount - Straight

630 A 007 NF 16 3 A
Single Overall Product Series Strain Relief Style (H, A, M, D)
EMI/RFI
Shield Termination Fitting Type Fitting Style
1 = RFI/EMI Only
A = Rear Mount
B = Front Mount 2 = Environmental Only
1. Metric dimensions (mm) are 3 = RFI/EMI Environmental
indicated in parentheses. Basic Part No. 4 = Non-RFI/EMI Non-Environmental
2. Cable range is defined as the
accommodations range for the Finish (Table II) Cable Entry (Table III)
wire bundle or cable. Dimen-
sions shown are not intended
for inspection criteria. Length Max Length
(Table III) Max
C .125 (3.2) Max A Thread (Table III)
Panel (Typ) (Table III)

Type A Type A
Rear Mount Rear Mount

D
Style 1 - RFI/EMI Style 3 - RFI/EMI Environmental

.410 Length .410 Length
(10.4) Max (10.4) Max
B Max (Table III) Max (Table III)

Type B Type B
Front Mount Front Mount

Style 2 - Style 4 - Non-RFI/EMI
.125 (3.2) Max Environmental
Panel (Typ) Non-Environmental

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty

E G G .135 (3.4)
Max

Cable F Cable H Cable Cable
Range Range Range H Range J

© 2005 Glenair, Inc. CAGE Code 06324 Rev. 08.12.16 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 8 E-Mail: sales@glenair.com
