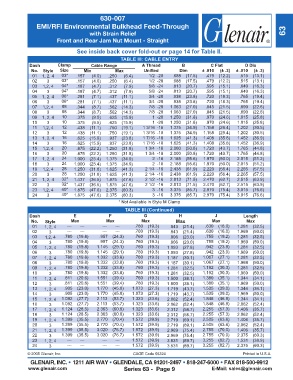

Page 559 - Circular Connector Backshells and Accessories

630-007
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief 63
Front and Rear Jam Nut Mount - Straight
See inside back cover fold-out or page 14 for Table II.

TABLE III: CABLE ENTRY
Dash Clamp Cable Range A Thread B C Flat D Dia
No. Style Size Min Max Unified Dim ± .010 (± .3) ± .010 (± .3)
01 1, 2, 4 03* .157 (4.0) .250 (6.4) 1/2 -28 .688 (17.5) .479 (12.2) .515 (13.1)
02 3 03* .157 (4.0) .250 (6.4) 1/2 -28 .688 (17.5) .479 (12.2) .515 (13.1)
03 1,2, 4 04* .187 (4.7) .312 (7.9) 5/8 -24 .813 (20.7) .595 (15.1) .640 (16.3)
04 3 04* .187 (4.7) .312 (7.9) 5/8 -24 .813 (20.7) .595 (15.1) .640 (16.3)
05 1, 2, 4 06* .281 (7.1) .437 (11.1) 3/4 -20 .938 (23.8) .720 (18.3) .765 (19.4)
06 3 06* .281 (7.1) .437 (11.1) 3/4 -20 .938 (23.8) .720 (18.3) .765 (19.4)
07 1,2, 4 08 .344 (8.7) .562 (14.3) 7/8 -20 1.063 (27.0) .845 (21.5) .890 (22.6)
08 3 08 .344 (8.7) .562 (14.3) 7/8 -20 1.063 (27.0) .845 (21.5) .890 (22.6)
09 1, 2, 4 10 .375 (9.5) .625 (15.9) 1 -20 1.250 (31.8) .970 (24.6) 1.015 (25.8)
10 3 10 .375 (9.5) .625 (15.9) 1 -20 1.250 (31.8) .970 (24.6) 1.015 (25.8)
11 1,2, 4 12 .438 (11.1) .750 (19.1) 1 3/16 -18 1.375 (34.9) 1.158 (29.4) 1.202 (30.5)
12 3 12 .438 (11.1) .750 (19.1) 1 3/16 -18 1.375 (34.9) 1.158 (29.4) 1.202 (30.5)
13 1, 2, 4 16 .625 (15.9) .937 (23.8) 1 7/16 -18 1.625 (41.3) 1.408 (35.8) 1.452 (36.9)
14 3 16 .625 (15.9) .937 (23.8) 1 7/16 -18 1.625 (41.3) 1.408 (35.8) 1.452 (36.9)
15 1,2, 4 20 .875 (22.2) 1.250 (31.8) 1 3/4 -18 2.000 (50.8) 1.720 (43.7) 1.765 (44.8)
16 3 20 .875 (22.2) 1.250 (31.8) 1 3/4 -18 2.000 (50.8) 1.720 (43.7) 1.765 (44.8)
17 1, 2, 4 24 1.000 (25.4) 1.375 (34.9) 2 -18 2.188 (55.6) 1.970 (50.0) 2.015 (51.2)
18 3 24 1.000 (25.4) 1.375 (34.9) 2 -18 2.188 (55.6) 1.970 (50.0) 2.015 (51.2)
19 1,2, 4 28 1.250 (31.8) 1.625 (41.3) 2 1/4 -16 2.438 (61.9) 2.220 (56.4) 2.265 (57.5)
20 3 28 1.250 (31.8) 1.625 (41.3) 2 1/4 -16 2.438 (61.9) 2.220 (56.4) 2.265 (57.5)
21 1, 2, 4 32* 1.437 (36.5) 1.875 (47.6) 2 1/2 -16 2.813 (71.5) 2.470 (62.7) 2.515 (63.9)
22 3 32* 1.437 (36.5) 1.875 (47.6) 2 1/2 -16 2.813 (71.5) 2.470 (62.7) 2.515 (63.9)
23 1,2, 4 40* 1.875 (47.6) 2.375 (60.3) 3 -16 3.375 (85.7) 2.970 (75.4) 3.015 (76.6)
24 3 40* 1.875 (47.6) 2.375 (60.3) 3 -16 3.375 (85.7) 2.970 (75.4) 3.015 (76.6)
* Not Available in Style M Clamp
TABLE III (Continued)
Dash E F G H J Length
No. Style Max Max Max Max Max Max
01 1, 2, 4 --- --- --- --- .760 (19.3) .843 (21.4) .630 (16.0) 1.281 (32.5)
02 3 --- --- --- --- .760 (19.3) .843 (21.4) .630 (16.0) 1.969 (50.0)
03 1,2, 4 .780 (19.8) .957 (24.3) .760 (19.3) .906 (23.0) .755 (19.2) 1.281 (32.5)
04 3 .780 (19.8) .957 (24.3) .760 (19.3) .906 (23.0) .755 (19.2) 1.969 (50.0)
05 1, 2, 4 .780 (19.8) 1.145 (29.1) .760 (19.3) 1.093 (27.8) .942 (23.9) 1.281 (32.5)
06 3 .780 (19.8) 1.145 (29.1) .760 (19.3) 1.093 (27.8) .942 (23.9) 1.969 (50.0)
07 1, 2, 4 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.187 (30.1) 1.067 (27.1) 1.281 (32.5)
08 3 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.187 (30.1) 1.067 (27.1) 1.969 (50.0)
09 1, 2, 4 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.281 (32.5) 1.192 (30.3) 1.281 (32.5)
10 3 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.281 (32.5) 1.192 (30.3) 1.969 (50.0)
11 1, 2, 4 .811 (20.6) 1.551 (39.4) .760 (19.3) 1.500 (38.1) 1.380 (35.1) 1.344 (34.1)
12 3 .811 (20.6) 1.551 (39.4) .760 (19.3) 1.500 (38.1) 1.380 (35.1) 1.969 (50.0)
13 1, 2, 4 .905 (23.0) 1.770 (45.0) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) 1.344 (34.1)
14 3 .905 (23.0) 1.770 (45.0) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) 1.969 (50.0)
15 1, 2, 4 1.092 (27.7) 2.113 (53.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) 1.344 (34.1)
16 3 1.092 (27.7) 2.113 (53.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) 2.062 (52.4)
17 1, 2, 4 1.124 (28.5) 2.363 (60.0) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.406 (35.7)
18 3 1.124 (28.5) 2.363 (60.0) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 2.062 (52.4)
19 1, 2, 4 1.399 (35.5) 2.770 (70.4) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.406 (35.7)
20 3 1.399 (35.5) 2.770 (70.4) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 2.062 (52.4)
21 1, 2, 4 1.399 (35.5) 3.020 (76.7) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.406 (35.7)
22 3 1.399 (35.5) 3.020 (76.7) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 2.375 (60.3)
23 1, 2, 4 --- --- --- --- 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.531 (38.9)
24 3 --- --- --- --- 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 2.375 (60.3)
