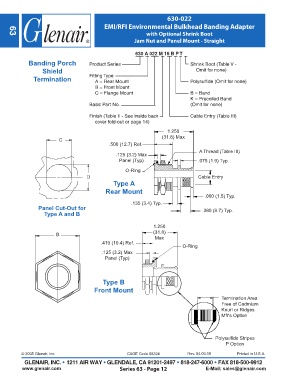

Page 562 - Circular Connector Backshells and Accessories

630-022
EMI/RFI Environmental Bulkhead Banding Adapter
with Optional Shrink Boot
63
Jam Nut and Panel Mount - Straight

630 A 022 M 16 B P T
Banding Porch Product Series Shrink Boot (Table V -
Shield Omit for none)
Termination Fitting Type Polysulfide (Omit for none)
A = Rear Mount
B = Front Mount
C = Flange Mount B = Band
K = Precoiled Band
Basic Part No. (Omit for none)

Finish (Table II - See inside back Cable Entry (Table III)
cover fold-out or page 14)
1.250
(31.8) Max
C
.500 (12.7) Ref.
A Thread (Table III)
.125 (3.2) Max
Panel (Typ) .075 (1.9) Typ.

O-Ring
D Cable Entry
Type A

Rear Mount
.060 (1.5) Typ.
.135 (3.4) Typ.
Panel Cut-Out for .380 (9.7) Typ.
Type A and B

1.250
B (31.8)
Max
.410 (10.4) Ref.
O-Ring
.125 (3.2) Max
Panel (Typ)

Type B
Front Mount

Termination Area
Free of Cadmium
Knurl or Ridges
Mfr's Option

Polysulfide Stripes
P Option

© 2005 Glenair, Inc. CAGE Code 06324 Rev. 04.06.18 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 12 E-Mail: sales@glenair.com
