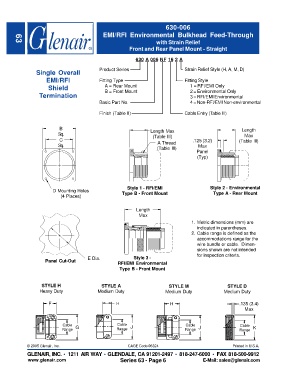

Page 556 - Circular Connector Backshells and Accessories

630-006
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief
63
Front and Rear Panel Mount - Straight

630 A 006 NF 16 2 A

Single Overall Product Series Strain Relief Style (H, A, M, D)
EMI/RFI Fitting Type Fitting Style
Shield A = Rear Mount 1 = RFI/EMI Only
Termination B = Front Mount 2 = Environmental Only
3 = RFI/EMI Environmental
Basic Part No. 4 = Non-RFI/EMI Non-environmental

Finish (Table II) Cable Entry (Table III)

B Length Max Length
Sq. (Table III) Max
C .125 (3.2) (Table III)
Sq. A Thread Max
(Table III)
Panel
(Typ)

Style 1 - RFI/EMI Style 2 - Environmental
D Mounting Holes Type A - Rear Mount
(4 Places) Type B - Front Mount

Length
Max

1. Metric dimensions (mm) are
indicated in parentheses.
2. Cable range is defined as the
accommodations range for the
wire bundle or cable. Dimen-
sions shown are not intended
for inspection criteria.
E Dia. Style 3 -
Panel Cut-Out
RFI/EMI Environmental
Type B - Front Mount

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty

F H H .135 (3.4)
Max

Cable G Cable J Cable J Cable
Range Range Range Range K

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 63 - Page 6 E-Mail: sales@glenair.com
