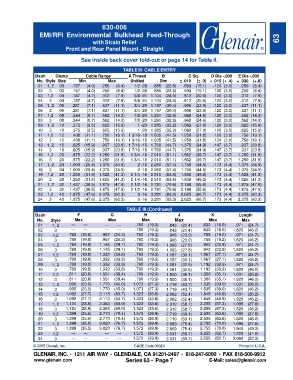

Page 557 - Circular Connector Backshells and Accessories

630-006
EMI/RFI Environmental Bulkhead Feed-Through
with Strain Relief 63
Front and Rear Panel Mount - Straight

See inside back cover fold-out or page 14 for Table II.

TABLE III: CABLE ENTRY
Dash Clamp Cable Range A Thread B C Sq. D Dia -.000 E Dia -.000
No. Style Size Min Max Unified Dim ± .010 (± .3) + .015 (+ .4) + .030 (+.8)
01 1, 2 03 .157 (4.0) .250 (6.4) 1/2 -28 .885 (22.5) .593 (15.1) .120 (3.0) .250 (6.4)
02 3 03 .157 (4.0) .250 (6.4) 1/2 -28 .885 (22.5) .593 (15.1) .120 (3.0) .250 (6.4)
03 1,2 04 .187 (4.7) .312 (7.9) 5/8 -24 1.104 (28.0) .812 (20.6) .120 (3.0) .312 (7.9)
04 3 04 .187 (4.7) .312 (7.9) 5/8 -24 1.104 (28.0) .812 (20.6) .120 (3.0) .312 (7.9)
05 1, 2 06 .281 (7.1) .437 (11.1) 3/4 -20 1.197 (30.4) .906 (23.0) .120 (3.0) .437 (11.1)
06 3 06 .281 (7.1) .437 (11.1) 3/4 -20 1.197 (30.4) .906 (23.0) .120 (3.0) .437 (11.1)
07 1,2 08 .344 (8.7) .562 (14.3) 7/8 -20 1.291 (32.8) .968 (24.6) .120 (3.0) .562 (14.3)
08 3 08 .344 (8.7) .562 (14.3) 7/8 -20 1.291 (32.8) .968 (24.6) .120 (3.0) .562 (14.3)
09 1, 2 10 .375 (9.5) .625 (15.9) 1 -20 1.385 (35.2) 1.062 (27.0) .120 (3.0) .625 (15.9)
10 3 10 .375 (9.5) .625 (15.9) 1 -20 1.385 (35.2) 1.062 (27.0) .120 (3.0) .625 (15.9)
11 1,2 12 .438 (11.1) .750 (19.1) 1 3/16 -18 1.635 (41.5) 1.250 (31.8) .120 (3.0) .750 (19.1)
12 3 12 .438 (11.1) .750 (19.1) 1 3/16 -18 1.635 (41.5) 1.250 (31.8) .120 (3.0) .750 (19.1)
13 1, 2 16 .625 (15.9) .937 (23.8) 1 7/16 -18 1.760 (44.7) 1.375 (34.9) .147 (3.7) .937 (23.8)
14 3 16 .625 (15.9) .937 (23.8) 1 7/16 -18 1.760 (44.7) 1.375 (34.9) .147 (3.7) .937 (23.8)
15 1,2 20 .875 (22.2) 1.250 (31.8) 1 3/4 -18 2.010 (51.1) 1.562 (39.7) .147 (3.7) 1.250 (31.8)
16 3 20 .875 (22.2) 1.250 (31.8) 1 3/4 -18 2.010 (51.1) 1.562 (39.7) .147 (3.7) 1.250 (31.8)
17 1, 2 24 1.000 (25.4) 1.375 (34.9) 2 -18 2.260 (57.4) 1.750 (44.5) .173 (4.4) 1.375 (34.9)
18 3 24 1.000 (25.4) 1.375 (34.9) 2 -18 2.260 (57.4) 1.750 (44.5) .173 (4.4) 1.375 (34.9)
19 1,2 28 1.250 (31.8) 1.625 (41.3) 2 1/4 -16 2.510 (63.8) 1.938 (49.2) .173 (4.4) 1.625 (41.3)
20 3 28 1.250 (31.8) 1.625 (41.3) 2 1/4 -16 2.510 (63.8) 1.938 (49.2) .173 (4.4) 1.625 (41.3)
21 1, 2 32 1.437 (36.5) 1.875 (47.6) 2 1/2 -16 2.781 (70.6) 2.188 (55.6) .173 (4.4) 1.875 (47.6)
22 3 32 1.437 (36.5) 1.875 (47.6) 2 1/2 -16 2.781 (70.6) 2.188 (55.6) .173 (4.4) 1.875 (47.6)
23 1,2 40 1.875 (47.6) 2.375 (60.3) 3 -16 3.281 (83.3) 2.625 (66.7) .173 (4.4) 2.375 (60.3)
24 3 40 1.875 (47.6) 2.375 (60.3) 3 -16 3.281 (83.3) 2.625 (66.7) .173 (4.4) 2.375 (60.3)

TABLE III (Continued)
Dash F G H J K Length
No. Style Max Max Max Max Max Max
01 1, 2 --- --- --- --- .760 (19.3) .843 (21.4) .630 (16.0) .971 (24.7)
02 3 --- --- --- --- .760 (19.3) .843 (21.4) .630 (16.0) 1.820 (46.2)
03 1,2 .780 (19.8) .957 (24.3) .760 (19.3) .906 (23.0) .755 (19.2) .971 (24.7)
04 3 .780 (19.8) .957 (24.3) .760 (19.3) .906 (23.0) .755 (19.2) 1.820 (46.2)
05 1, 2 .780 (19.8) 1.145 (29.1) .760 (19.3) 1.093 (27.8) .942 (23.9) .971 (24.7)
06 3 .780 (19.8) 1.145 (29.1) .760 (19.3) 1.093 (27.8) .942 (23.9) 1.820 (46.2)
07 1,2 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .971 (24.7)
08 3 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.187 (30.1) 1.067 (27.1) 1.820 (46.2)
09 1, 2 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .971 (24.7)
10 3 .780 (19.8) 1.332 (33.8) .760 (19.3) 1.281 (32.5) 1.192 (30.3) 1.820 (46.2)
11 1,2 .811 (20.6) 1.551 (39.4) .760 (19.3) 1.500 (38.1) 1.380 (35.1) 1.031 (26.2)
12 3 .811 (20.6) 1.551 (39.4) .760 (19.3) 1.500 (38.1) 1.380 (35.1) 1.820 (46.2)
13 1, 2 .905 (23.0) 1.770 (45.0) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) 1.031 (26.2)
14 3 .905 (23.0) 1.770 (45.0) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) 1.820 (46.2)
15 1,2 1.092 (27.7) 2.113 (53.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) 1.031 (26.2)
16 3 1.092 (27.7) 2.113 (53.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) 1.820 (46.2)
17 1, 2 1.124 (28.5) 2.363 (60.0) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.095 (27.8)
18 3 1.124 (28.5) 2.363 (60.0) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.820 (46.2)
19 1,2 1.399 (35.5) 2.770 (70.4) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.095 (27.8)
20 3 1.399 (35.5) 2.770 (70.4) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.820 (46.2)
21 1, 2 1.399 (35.5) 3.020 (76.7) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.095 (27.8)
22 3 1.399 (35.5) 3.020 (76.7) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.940 (49.3)
23 1,2 --- --- --- --- 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.220 (31.0)
24 3 --- --- --- --- 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 2.060 (52.3)
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
