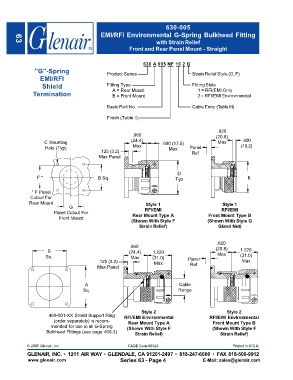

Page 554 - Circular Connector Backshells and Accessories

630-005
EMI/RFI Environmental G-Spring Bulkhead Fitting
with Strain Relief
6
3
Front and Rear Panel Mount - Straight

630 A 005 NF 16 2 G
"G"-Spring Product Series Strain Relief Style (G, F)
EMI/RFI
Shield Fitting Type Fitting Style
Termination A = Rear Mount 1 = RFI/EMI Only
2 = RFI/EMI Environmental
B = Front Mount
Basic Part No. Cable Entry (Table III)

Finish (Table II)

.820
.960 (20.8)
C Mounting (24.4) .690 (17.5) Max .400
Hole (Typ) Max Max Panel (10.2)
.125 (3.2) Ref
Max Panel

D
F * B Sq. Typ E

* F Panel
Cutout For
Rear Mount Style 1 Style 1
G
RFI/EMI
RFI/EMI
Panel Cutout For Rear Mount Type A Front Mount Type B
Front Mount
(Shown With Style F (Shown With Style G
Strain Relief) Gland Nut)

.820
.960
B (24.4) 1.220 (20.8) 1.220
Sq. Max (31.0) Panel Max (31.0)
.125 (3.2) Max Max
Max Panel Ref

A Cable
Sq. Range

Style 2 Style 2
469-001-XX Shield Support Ring RFI/EMI Environmental RFI/EMI Environmental
(order separately) is recom- Rear Mount Type A Front Mount Type B
mended for use in all G-Spring (Shown With Style F (Shown With Style F
Bulkhead Fittings (see page 460-3) Strain Relief) Strain Relief)
