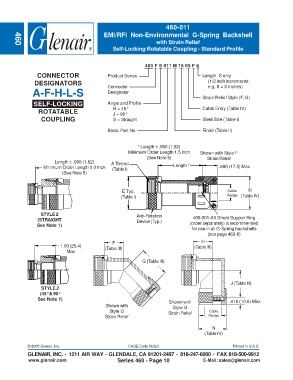

Page 522 - Circular Connector Backshells and Accessories

460-011
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief
460
Self-Locking Rotatable Coupling - Standard Profile

460 F S 011 M 16 05 F 6

CONNECTOR Product Series Length: S only
DESIGNATORS Connector (1/2 inch increments:
e.g. 6 = 3 inches)
A-F-H-L-S Designator
Strain Relief Style (F, G)
SELF-LOCKING Angle and Profile
ROTATABLE H = 45° Cable Entry (Table IV)
J = 90°
COUPLING S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)

* Length ± .060 (1.52)
Minimum Order Length 1.5 Inch Shown with Style F
(See Note 5) Strain Relief
Length ± .060 (1.52) A Thread
Minimum Order Length 2.0 Inch (Table I) Length * .690 (17.5) Max
(See Note 5)

E Typ. Cable M
(Table I) Range (Table IV)

STYLE 2 Anti-Rotation
(STRAIGHT Device (Typ.) 469-001-XX Shield Support Ring
See Note 1) (order separately) is recommended
for use in all G-Spring backshells
(see page 463-8)

F H
1.00 (25.4) (Table III) (Table III)
Max
G (Table III)

J (Table III)
STYLE 2
(45° & 90°
See Note 1) Shown with .416 (10.6) Max
Shown with Style G
Style G Strain Relief Cable
Strain Relief Range

N
(Table IV)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 460 - Page 10 E-Mail: sales@glenair.com
