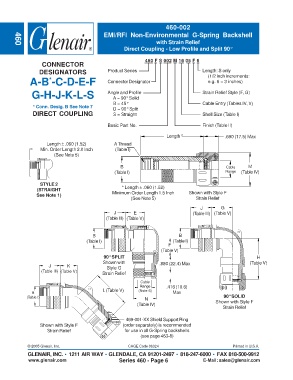

Page 518 - Circular Connector Backshells and Accessories

460-002
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief
460
Direct Coupling - Low Profile and Split 90°
460 F S 002 M 16 05 F 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-B -C-D-E-F Connector Designator e.g. 6 = 3 inches)
*
G-H-J-K-L-S Angle and Profile Strain Relief Style (F, G)
A = 90° Solid
B = 45° Cable Entry (Tables IV, V)
* Conn. Desig. B See Note 7 D = 90° Split
DIRECT COUPLING S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)

Length * .690 (17.5) Max
Length ± .060 (1.52) A Thread
Min. Order Length 2.0 Inch (Table I)
(See Note 5)

B Cable M
(Table I) Range (Table IV)

STYLE 2
(STRAIGHT * Length ± .060 (1.52)
See Note 1) Minimum Order Length 1.5 Inch Shown with Style F
(See Note 5) Strain Relief

J G
J E (Table III) (Table V)
(Table III) (Table V)

B B
(Table I) (Table I)
F
(Table V)
90° SPLIT H
Shown with .880 (22.4) Max (Table V)
J K Style G
(Table III) (Table V)
Strain Relief
Cable
Range .416 (10.6)
L (Table V) (Note 6)
B Max
(Table I) N 90° SOLID
(Table IV) Shown with Style F
Strain Relief

469-001-XX Shield Support Ring
Shown with Style F (order separately) is recommended
Strain Relief for use in all G-Spring backshells
(see page 463-8)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 460 - Page 6 E-Mail: sales@glenair.com
