Page 520 - Circular Connector Backshells and Accessories

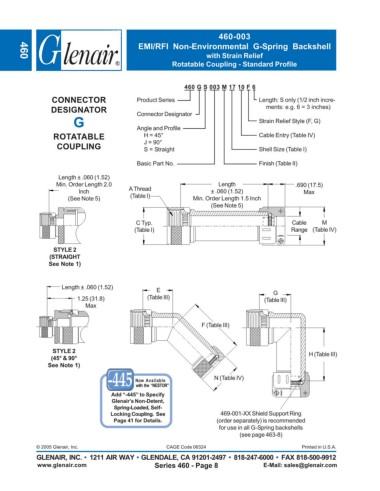

460-003
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief
460
Rotatable Coupling - Standard Profile

460 G S 003 M 17 10 F 6
CONNECTOR Product Series Length: S only (1/2 inch incre-
DESIGNATOR Connector Designator ments: e.g. 6 = 3 inches)
G Strain Relief Style (F, G)
Angle and Profile
ROTATABLE H = 45° Cable Entry (Table IV)
COUPLING J = 90° Shell Size (Table I)
S = Straight
Basic Part No. Finish (Table II)

Length ± .060 (1.52)
Min. Order Length 2.0 Length .690 (17.5)
Inch A Thread ± .060 (1.52) Max
(See Note 5) (Table I) Min. Order Length 1.5 Inch
(See Note 5)

C Typ. Cable M
(Table I) Range (Table IV)

STYLE 2
(STRAIGHT
See Note 1)

Length ± .060 (1.52) E G

1.25 (31.8) (Table III) (Table III)
Max

F (Table III)

STYLE 2 H (Table III)
(45° & 90°
See Note 1)

N (Table IV)
Now Available
with the “NESTOR”
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See 469-001-XX Shield Support Ring
Page 41 for Details. (order separately) is recommended
for use in all G-Spring backshells
(see page 463-8)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 460 - Page 8 E-Mail: sales@glenair.com
