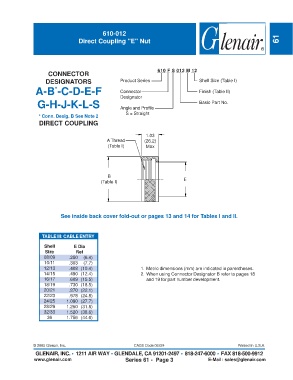

610-012
Direct Coupling "E" Nut 61

610 F S 012 M 12
CONNECTOR
DESIGNATORS Product Series Shell Size (Table I)
A-B -C-D-E-F Connector Finish (Table II)
*
Designator
G-H-J-K-L-S Angle and Profile Basic Part No.

S = Straight
* Conn. Desig. B See Note 2
DIRECT COUPLING

1.03
A Thread (26.2)
(Table I) Max

B
(Table I) E

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY

Shell E Dia
Size Ref
08/09 .250 (6.4)
10/11 .303 (7.7)
12/13 .408 (10.4) 1. Metric dimensions (mm) are indicated in parentheses.
14/15 .490 (12.4) 2. When using Connector Designator B refer to pages 18
16/17 .609 (15.5) and 19 for part number development.
18/19 .730 (18.5)
20/21 .870 (22.1)
22/23 .978 (24.8)
24/25 1.090 (27.7)
28/29 1.250 (31.8)
32/33 1.520 (38.6)
36 1.756 (44.6)
