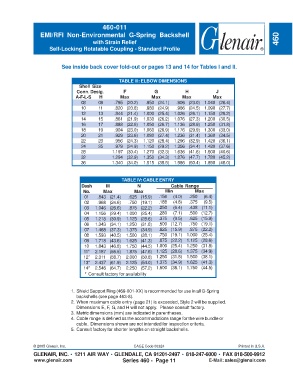

P. 523
460-011
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief 460
Self-Locking Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. F G H J
A-F-L-S H Max Max Max Max
08 09 .795 (20.2) .950 (24.1) .906 (23.0) 1.040 (26.4)
10 11 .820 (20.8) .980 (24.9) .966 (24.5) 1.090 (27.7)
12 13 .844 (21.4) 1.000 (25.4) 1.026 (26.1) 1.150 (29.2)
14 15 .861 (21.9) 1.030 (26.2) 1.076 (27.3) 1.200 (30.5)
16 17 .888 (22.6) 1.050 (26.7) 1.136 (28.9) 1.250 (31.8)
18 19 .904 (23.0) 1.060 (26.9) 1.176 (29.9) 1.300 (33.0)
20 21 .929 (23.6) 1.080 (27.4) 1.236 (31.4) 1.360 (34.5)
22 23 .956 (24.3) 1.120 (28.4) 1.296 (32.9) 1.420 (36.1)
24 25 .979 (24.9) 1.150 (29.2) 1.356 (34.4) 1.480 (37.6)
28 1.197 (30.4) 1.270 (32.3) 1.636 (41.6) 1.600 (40.6)
32 1.294 (32.9) 1.350 (34.3) 1.876 (47.7) 1.780 (45.2)
36 1.340 (34.0) 1.515 (38.5) 1.986 (50.4) 1.890 (48.0)
TABLE IV: CABLE ENTRY
Dash M N Cable Range
No. Max Max Min Max
01 .843 (21.4) .625 (15.9) .156 (4.0) .250 (6.4)
02 .968 (24.6) .750 (19.1) .188 (4.8) .375 (9.5)
03 1.046 (26.6) .875 (22.2) .250 (6.4) .438 (11.1)
04 1.156 (29.4) 1.000 (25.4) .280 (7.1) .500 (12.7)
05 1.218 (30.9) 1.125 (28.6) .375 (9.5) .625 (15.9)
06 1.343 (34.1) 1.250 (31.8) .500 (12.7) .750 (19.1)
07 1.468 (37.3) 1.375 (34.9) .625 (15.9) .875 (22.2)
08 1.593 (40.5) 1.500 (38.1) .750 (19.1) 1.000 (25.4)
09 1.718 (43.6) 1.625 (41.3) .875 (22.2) 1.125 (28.6)
10 1.843 (46.8) 1.750 (44.5) 1.000 (25.4) 1.250 (31.8)
11* 2.187 (55.5) 1.875 (47.6) 1.125 (28.6) 1.375 (34.9)
12* 2.311 (58.7) 2.000 (50.8) 1.250 (31.8) 1.500 (38.1)
13* 2.437 (61.9) 2.125 (54.0) 1.375 (34.9) 1.625 (41.3)
14* 2.546 (64.7) 2.250 (57.2) 1.500 (38.1) 1.750 (44.5)
* Consult factory for availability
1. Shield Support Ring (469-001-XX) is recommended for use in all G-Spring
backshells (see page 463-8).
2. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G, and H will not apply. Please consult factory.
3. Metric dimensions (mm) are indicated in parentheses.
4. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
5. Consult factory for shorter lengths on straight backshells.
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 460 - Page 11 E-Mail: sales@glenair.com
