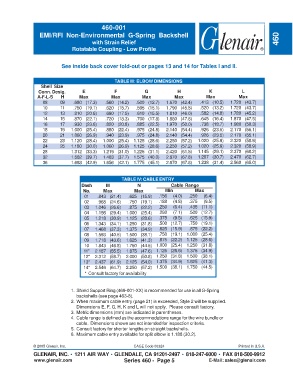

P. 517

460-001
                  EMI/RFI Non-Environmental G-Spring Backshell
                                        with Strain Relief                                                           460
                               Rotatable Coupling - Low Profile


                           See inside back cover fold-out or pages 13 and 14 for Tables I and II.


                                                 TABLE III: ELBOW DIMENSIONS
                  Shell Size
                 Conn. Desig.      E             F            G            H            K             L
                 A-F-L-S   H      Max          Max          Max           Max          Max           Max
                   08     09    .680 (17.3)  .560 (14.2)  .500 (12.7)  1.670 (42.4)  .413 (10.5)  1.720 (43.7)
                   10     11    .750 (19.1)  .620 (15.7)  .595 (15.1)  1.790 (45.5)  .520 (13.2)  1.720 (43.7)
                   12     13    .810 (20.6)  .690 (17.5)  .610 (15.5)  1.810 (46.0)  .582 (14.8)  1.780 (45.2)
                   14     15    .870 (22.1)  .720 (18.3)  .700 (17.8)  1.880 (47.8)  .645 (16.4)  1.870 (47.5)
                   16     17    .930 (23.6)  .820 (20.8)  .885 (22.5)  1.970 (50.0)  .738 (18.7)  1.980 (50.3)
                   18     19   1.000 (25.4)  .880 (22.4)  .975 (24.8)  2.140 (54.4)  .926 (23.5)  2.170 (55.1)
                   20     21   1.060 (26.9)  .940 (23.9)  .975 (24.8)  2.140 (54.4)  .926 (23.5)  2.170 (55.1)
                   22     23   1.120 (28.4)  1.000 (25.4)  1.125 (28.6)  2.250 (57.2)  1.020 (25.9)  2.320 (58.9)
                   24     25   1.180 (30.0)  1.060 (26.9)  1.125 (28.6)  2.250 (57.2)  1.020 (25.9)  2.320 (58.9)
                   28          1.312 (33.3)  1.219 (31.0)  1.225 (31.1)  2.420 (61.5)  1.145 (29.1)  2.370 (60.2)
                   32          1.562 (39.7)  1.483 (37.7)  1.575 (40.0)  2.670 (67.8)  1.207 (30.7)  2.470 (62.7)
                   36          1.688 (42.9)  1.656 (42.1)  1.775 (45.1)  2.670 (67.8)  1.238 (31.4)  2.560 (65.0)


                                                    TABLE IV: CABLE ENTRY
                                   Dash      M            N             Cable Range
                                    No.     Max          Max          Min         Max
                                    01    .843 (21.4)  .625 (15.9)  .156  (4.0)  .250  (6.4)
                                    02    .968 (24.6)  .750 (19.1)  .188  (4.8)  .375  (9.5)
                                    03   1.046 (26.6)  .875 (22.2)  .250  (6.4)  .438 (11.1)
                                    04   1.156 (29.4)  1.000 (25.4)  .280  (7.1)  .500 (12.7)
                                    05   1.218 (30.9)  1.125 (28.6)  .375  (9.5)  .625 (15.9)
                                    06   1.343 (34.1)  1.250 (31.8)  .500 (12.7)  .750 (19.1)
                                    07   1.468 (37.3)  1.375 (34.9)  .625 (15.9)  .875 (22.2)
                                    08   1.593 (40.5)  1.500 (38.1)  .750 (19.1) 1.000 (25.4)
                                    09   1.718 (43.6)  1.625 (41.3)  .875 (22.2) 1.125 (28.6)
                                    10   1.843 (46.8)  1.750 (44.5)  1.000 (25.4) 1.250 (31.8)
                                    11*  2.187 (55.5)  1.875 (47.6)  1.125 (28.6) 1.375 (34.9)
                                    12*  2.312 (58.7)  2.000 (50.8)  1.250 (31.8) 1.500 (38.1)
                                    13*  2.437 (61.9)  2.125 (54.0)  1.375 (34.9) 1.625 (41.3)
                                    14*  2.546 (64.7)  2.250 (57.2)  1.500 (38.1) 1.750 (44.5)
                                    *  Consult factory for availability



                               1. Shield Support Ring (469-001-XX) is recommended for use in all G-Spring
                                 backshells (see page 463-8).
                               2. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
                                 Dimensions E, F, G, H, K and L will not apply.  Please consult factory.
                               3. Metric dimensions (mm) are indicated in parentheses.
                               4. Cable range is defined as the accommodations range for the wire bundle or
                                 cable.  Dimensions shown are not intended for inspection criteria.
                               5. Consult factory for shorter lengths on straight backshells.
                               6. Maximum cable entry available for split elbow is 1.188 (30.2).


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 460 -  Page 5               E-Mail: sales@glenair.com
