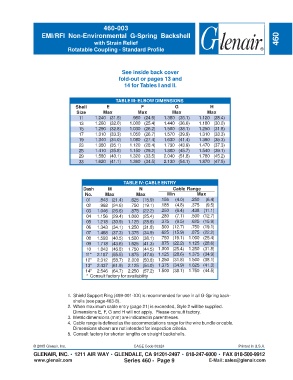

460-003
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief 460
Rotatable Coupling - Standard Profile

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell E F G H
Size Max Max Max Max
11 1.240 (31.5) .980 (24.9) 1.380 (35.1) 1.120 (28.4)
13 1.260 (32.0) 1.000 (25.4) 1.440 (36.6) 1.180 (30.0)
15 1.290 (32.8) 1.030 (26.2) 1.500 (38.1) 1.250 (31.8)
17 1.310 (33.3) 1.050 (26.7) 1.570 (39.9) 1.310 (33.3)
19 1.340 (34.0) 1.080 (27.4) 1.630 (41.4) 1.390 (35.3)
23 1.380 (35.1) 1.120 (28.4) 1.730 (43.9) 1.470 (37.3)
25 1.410 (35.8) 1.150 (29.2) 1.800 (45.7) 1.540 (39.1)
29 1.580 (40.1) 1.320 (33.5) 2.040 (51.8) 1.780 (45.2)
33 1.620 (41.1) 1.360 (34.5) 2.130 (54.1) 1.870 (47.5)

TABLE IV: CABLE ENTRY
Dash M N Cable Range
No. Max Max Min Max
01 .843 (21.4) .625 (15.9) .156 (4.0) .250 (6.4)
02 .968 (24.6) .750 (19.1) .188 (4.8) .375 (9.5)
03 1.046 (26.6) .875 (22.2) .250 (6.4) .438 (11.1)
04 1.156 (29.4) 1.000 (25.4) .280 (7.1) .500 (12.7)
05 1.218 (30.9) 1.125 (28.6) .375 (9.5) .625 (15.9)
06 1.343 (34.1) 1.250 (31.8) .500 (12.7) .750 (19.1)
07 1.468 (37.3) 1.375 (34.9) .625 (15.9) .875 (22.2)
08 1.593 (40.5) 1.500 (38.1) .750 (19.1) 1.000 (25.4)
09 1.718 (43.6) 1.625 (41.3) .875 (22.2) 1.125 (28.6)
10 1.843 (46.8) 1.750 (44.5) 1.000 (25.4) 1.250 (31.8)
11* 2.187 (55.5) 1.875 (47.6) 1.125 (28.6) 1.375 (34.9)
12* 2.312 (58.7) 2.000 (50.8) 1.250 (31.8) 1.500 (38.1)
13* 2.437 (61.9) 2.125 (54.0) 1.375 (34.9) 1.625 (41.3)
14* 2.546 (64.7) 2.250 (57.2) 1.500 (38.1) 1.750 (44.5)
* Consult factory for availability

1. Shield Support Ring (469-001-XX) is recommended for use in all G-Spring back-
shells (see page 463-8).
2. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
3. Metric dimensions (mm) are indicated in parentheses.
4. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
5. Consult factory for shorter lengths on straight backshells.
