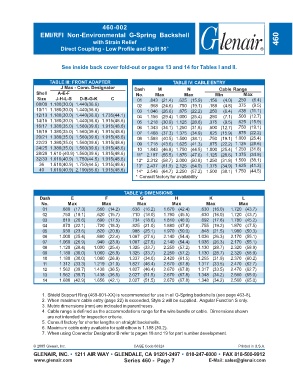

Page 519 - Circular Connector Backshells and Accessories

460-002
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief 460
Direct Coupling - Low Profile and Split 90°

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: FRONT ADAPTER TABLE IV: CABLE ENTRY
J Max - Conn. Designator Dash M N Cable Range
Shell A-E-F No. Max Max Min Max
Size J-H-L-S D-B-G-K C 01 .843 (21.4) .625 (15.9) .156 (4.0) .250 (6.4)
08/09 1.180(30.0) 1.440(36.6) 02 .968 (24.6) .750 (19.1) .188 (4.8) .375 (9.5)
10/11 1.180(30.0) 1.440(36.6) 03 1.046 (26.6) .875 (22.2) .250 (6.4) .438 (11.1)
12/13 1.180(30.0) 1.440(36.6) 1.735(44.1) 04 1.156 (29.4) 1.000 (25.4) .280 (7.1) .500 (12.7)
14/15 1.180(30.0) 1.440(36.6) 1.915(48.6) 05 1.218 (30.9) 1.125 (28.6) .375 (9.5) .625 (15.9)
16/17 1.380(35.0) 1.560(39.6) 1.915(48.6) 06 1.343 (34.1) 1.250 (31.8) .500 (12.7) .750 (19.1)
18/19 1.380(35.0) 1.560(39.6) 1.915(48.6) 07 1.468 (37.3) 1.375 (34.9) .625 (15.9) .875 (22.2)
20/21 1.380(35.0) 1.560(39.6) 1.915(48.6) 08 1.593 (40.5) 1.500 (38.1) .750 (19.1) 1.000 (25.4)
22/23 1.380(35.0) 1.560(39.6) 1.915(48.6) 09 1.718 (43.6) 1.625 (41.3) .875 (22.2) 1.125 (28.6)
24/25 1.380(35.0) 1.560(39.6) 1.915(48.6) 10 1.843 (46.8) 1.750 (44.5) 1.000 (25.4) 1.250 (31.8)
28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6) 11* 2.187 (55.5) 1.875 (47.6) 1.125 (28.6) 1.375 (34.9)
32/33 1.610(40.9) 1.750(44.5) 1.915(48.6) 12* 2.312 (58.7) 2.000 (50.8) 1.250 (31.8) 1.500 (38.1)
36 1.610(40.9) 1.750(44.5) 1.915(48.6) 13* 2.437 (61.9) 2.125 (54.0) 1.375 (34.9) 1.625 (41.3)
40 1.610(40.9) 2.190(55.6) 1.915(48.6) 14* 2.546 (64.7) 2.250 (57.2) 1.500 (38.1) 1.750 (44.5)
* Consult factory for availability

TABLE V: DIMENSIONS
Dash E F G H K L
No. Max Max Max Max Max Max
01 .680 (17.3) .560 (14.2) .636 (16.2) 1.670 (42.4) .630 (16.0) 1.720 (43.7)
02 .750 (19.1) .620 (15.7) .710 (18.0) 1.790 (45.5) .630 (16.0) 1.720 (43.7)
03 .810 (20.6) .690 (17.5) .734 (18.6) 1.810 (46.0) .692 (17.6) 1.780 (45.2)
04 .870 (22.1) .720 (18.3) .825 (21.0) 1.880 (47.8) .755 (19.2) 1.870 (47.5)
05 .930 (23.6) .820 (20.8) .988 (25.1) 1.970 (50.0) .848 (21.5) 1.980 (50.3)
06 1.000 (25.4) .880 (22.4) 1.087 (27.6) 2.140 (54.4) 1.036 (26.3) 2.170 (55.1)
07 1.060 (26.9) .940 (23.9) 1.087 (27.6) 2.140 (54.4) 1.036 (26.3) 2.170 (55.1)
08 1.120 (28.4) 1.000 (25.4) 1.325 (33.7) 2.250 (57.2) 1.130 (28.7) 2.320 (58.9)
09 1.180 (30.0) 1.060 (26.9) 1.325 (33.7) 2.250 (57.2) 1.130 (28.7) 2.320 (58.9)
10 1.180 (30.0) 1.060 (26.9) 1.337 (34.0) 2.420 (61.5) 1.255 (31.9) 2.370 (60.2)
11 1.312 (33.3) 1.219 (31.0) 1.827 (46.4) 2.670 (67.8) 1.317 (33.5) 2.470 (62.7)
12 1.562 (39.7) 1.438 (36.5) 1.827 (46.4) 2.670 (67.8) 1.317 (33.5) 2.470 (62.7)
13 1.562 (39.7) 1.438 (36.5) 2.027 (51.5) 2.670 (67.8) 1.348 (34.2) 2.560 (65.0)
14 1.688 (42.9) 1.656 (42.1) 2.027 (51.5) 2.670 (67.8) 1.348 (34.2) 2.560 (65.0)

1. Shield Support Ring (469-001-XX) is recommended for use in all G-Spring backshells (see page 463-8).
2. When maximum cable entry (page 22) is exceeded, Style 2 will be supplied. Angular Function S only.
3. Metric dimensions (mm) are indicated in parentheses.
4. Cable range is defined as the accommodations range for the wire bundle or cable. Dimensions shown
are not intended for inspection criteria.
5. Consult factory for shorter lengths on straight backshells.
6. Maximum cable entry available for split elbow is 1.188 (30.2).
7. When using Connector Designator B refer to pages 18 and 19 for part number development.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 460 - Page 7 E-Mail: sales@glenair.com
