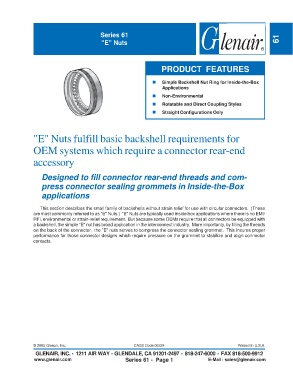

Page 525 - Circular Connector Backshells and Accessories

Series 61
"E" Nuts 61

PRODUCT FEATURES

„ „ „ „ „ Simple Backshell Nut Ring for Inside-the-Box
Applications
„ „ „ „ „ Non-Environmental
„ „ „ „ „ Rotatable and Direct Coupling Styles

„ „ „ „ „ Straight Configurations Only

"E" Nuts fulfill basic backshell requirements for

OEM systems which require a connector rear-end

accessory

Designed to fill connector rear-end threads and com-
press connector sealing grommets in Inside-the-Box

applications

This section describes the small family of backshells without strain relief for use with circular connectors. (These
are most commonly referred to as "E" Nuts.) "E" Nuts are typically used inside box applications where there is no EMI/
RFI, environmental or strain-relief requirement. But because some OEMs require that all connectors be equipped with
a backshell, the simple "E" nut has broad application in the interconnect industry. More importanty, by filling the threads
on the back of the connector, the "E" nuts serves to compress the connector sealing grommet. This insures proper
performance for those connector designs which require pressure on the grommet to stabilize and align connector
contacts.
