Page 526 - Circular Connector Backshells and Accessories

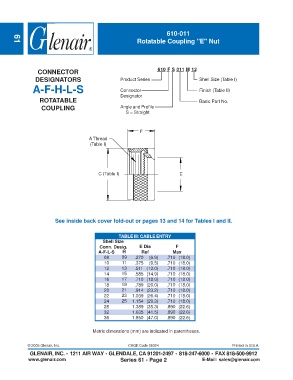

610-011
Rotatable Coupling "E" Nut
61

CONNECTOR 610 F S 011 M 12
DESIGNATORS Product Series Shell Size (Table I)
A-F-H-L-S Connector Finish (Table II)
Designator
ROTATABLE Basic Part No.
COUPLING Angle and Profile
S = Straight

F
A Thread
(Table I)

C (Table I) E

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY
Shell Size
Conn. Desig. E Dia F
A-F-L-S H Ref Max
08 09 .270 (6.9) .710 (18.0)
10 11 .375 (9.5) .710 (18.0)
12 13 .511 (13.0) .710 (18.0)
14 15 .585 (14.9) .710 (18.0)
16 17 .710 (18.0) .710 (18.0)
18 19 .789 (20.0) .710 (18.0)
20 21 .914 (23.2) .710 (18.0)
22 23 1.039 (26.4) .710 (18.0)
24 25 1.154 (29.3) .710 (18.0)
28 1.389 (35.3) .890 (22.6)
32 1.635 (41.5) .890 (22.6)
36 1.850 (47.0) .890 (22.6)

Metric dimensions (mm) are indicated in parentheses.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 61 - Page 2 E-Mail: sales@glenair.com
