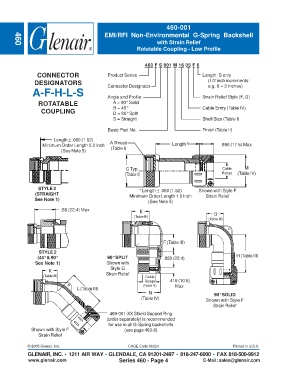

Page 516 - Circular Connector Backshells and Accessories

460-001
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief
460
Rotatable Coupling - Low Profile

460 F S 001 M 16 05 F 6

CONNECTOR Product Series Length: S only
DESIGNATORS Connector Designator (1/2 inch increments:
e.g. 6 = 3 inches)
A-F-H-L-S Angle and Profile Strain Relief Style (F, G)

ROTATABLE A = 90° Solid
COUPLING B = 45° Cable Entry (Table IV)
D = 90° Split
S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)

Length ± .060 (1.52)
Minimum Order Length 2.0 Inch A Thread Length * .690 (17.5) Max
(See Note 5) (Table I)

C Typ. Cable M
(Table I) Range (Table IV)

STYLE 2 * Length ± .060 (1.52) Shown with Style F
(STRAIGHT Minimum Order Length 1.5 Inch Strain Relief
See Note 1) (See Note 5)

.88 (22.4) Max E
(Table III) G
(Table III)

F (Table III)

STYLE 2
(45° & 90° 90° SPLIT .880 (22.4) H (Table III)
See Note 1) Shown with
Style G
K
(Table III) Strain Relief Cable
Range .416 (10.6)
(Note 6) Max
L (Table III)
N 90° SOLID
(Table IV) Shown with Style F
Strain Relief
469-001-XX Shield Support Ring
(order separately) is recommended
for use in all G-Spring backshells
Shown with Style F (see page 463-8)
Strain Relief

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 460 - Page 4 E-Mail: sales@glenair.com
