Page 372 - Circular Connector Backshells and Accessories

403-001

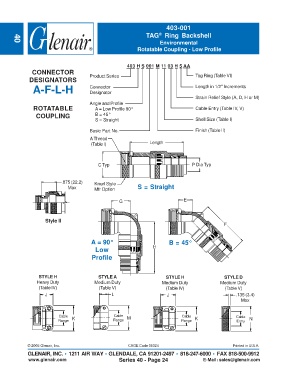

TAG Ring Backshell
®
Environmental
40
Rotatable Coupling - Low Profile

403 H S 001 M 11 03 H 5 AA
CONNECTOR Tag Ring (Table VI)
DESIGNATORS Product Series
A-F-L-H Connector Length in 1/2" Increments
Designator
Strain Relief Style (A, D, H or M)
SELF-LOCKING Angle and Profile
ROTATABLE A = Low Profile 90° Cable Entry (Table IV, V)
COUPLING B = 45°
S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)
A Thread
(Table I) Length

C Typ P Dia Typ

.875 (22.2) Knurl Style
Max Mfr Option S = Straight

G E

Style II
F

A = 90° B = 45°
Low H
Profile

STYLE H STYLE A STYLE H STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table IV) (Table V) (Table IV) (Table V)
J L J .135 (3.4)
Max

Cable K Cable M Cable K Cable N
Range Range Range Entry
