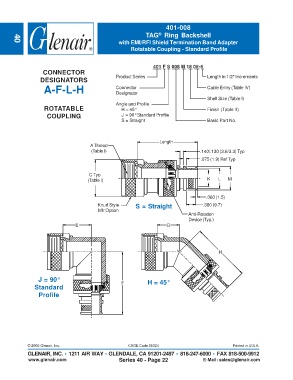

Page 370 - Circular Connector Backshells and Accessories

401-008
TAG Ring Backshell
®
with EMI/RFI Shield Termination Band Adapter
40
Rotatable Coupling - Standard Profile

401 F S 008 M 18 06-6
CONNECTOR
DESIGNATORS Product Series Length in 1/2" Increments
A-F-L-H Connector Cable Entry (Table IV)
Designator
SELF-LOCKING Angle and Profile Shell Size (Table I)
ROTATABLE H = 45° Finish (Table II)
COUPLING J = 90° Standard Profile
S = Straight Basic Part No.

Length
A Thread
(Table I) .140/.130 (3.6/3.3) Typ
.075 (1.9) Ref Typ

C Typ.
(Table I) K L M

.060 (1.5)
Knurl Style S = Straight .380 (9.7)
Mfr Option
Anti-Rotation
Device (Typ.)
E G

H

J = 90° F H = 45°
Standard
Profile
