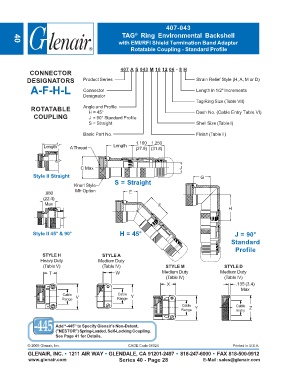

407-043
TAG Ring Environmental Backshell
®
with EMI/RFI Shield Termination Band Adapter
40
Rotatable Coupling - Standard Profile

CONNECTOR 407 A S 043 M 16 12 06 - 8 H
DESIGNATORS Product Series Strain Relief Style (H, A, M or D)
A-F-H-L Connector Length in 1/2" Increments
Designator
SELF-LOCKING Tag Ring Size (Table VII)
ROTATABLE Angle and Profile Dash No. (Cable Entry Table VI)
H = 45°
COUPLING J = 90° Standard Profile
S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)
1.100 1.250
Length A Thread Length (27.9) (31.8)

C Max J
Style II Straight G
S = Straight
Knurl Style
.880 Mfr Option E
(22.4)
Max F
H

Style II 45° & 90° H = 45° J = 90°
Standard
Profile
STYLE H STYLE A
Heavy Duty Medium Duty
(Table V) (Table IV) STYLE M STYLE D
T W Medium Duty Medium Duty
(Table IV) (Table IV)
X .135 (3.4)
Max
Cable V Cable Y
Range Range
Cable Y Cable Z
Range Entry

Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 28 E-Mail: sales@glenair.com
