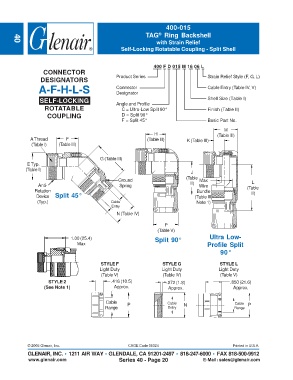

Page 368 - Circular Connector Backshells and Accessories

400-015
TAG Ring Backshell
®
with Strain Relief
40
Self-Locking Rotatable Coupling - Split Shell

400 F D 015 M 16 06 L
CONNECTOR
DESIGNATORS Product Series Strain Relief Style (F, G, L)
A-F-H-L-S Connector Cable Entry (Table IV, V)
Designator
SELF-LOCKING Angle and Profile Shell Size (Table I)
ROTATABLE C = Ultra-Low Split 90° Finish (Table II)
COUPLING D = Split 90°
F = Split 45° Basic Part No.
M
H (Table III)
A Thread F (Table III) K (Table III)
(Table I) (Table III)

G (Table III)
E Typ.
(Table I)
J
(Table
Ground Max L
Anti- Spring III) Wire (Table
Rotation Bundle III)
Device Split 45° (Table III,
(Typ.) Cable Note 1)
Entry
N (Table IV)

P
(Table V)
1.00 (25.4) Split 90° Ultra Low-
Max Profile Split
90°

STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table V) (Table IV) (Table V)
STYLE 2 .416 (10.5) .072 (1.8) .850 (21.6)
(See Note 1) Approx. Approx. Approx.

Cable P Cable N Cable P
Range Entry Range

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 20 E-Mail: sales@glenair.com
