P. 375

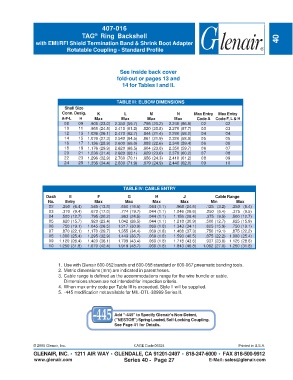

407-016
®
TAG Ring Backshell 40
with EMI/RFI Shield Termination Band & Shrink Boot Adapter
Rotatable Coupling - Standard Profile
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. K L M N Max Entry Max Entry
A-F-L H Max Max Max Max Code A Code F, L & H
08 09 .906 (23.0) 2.350 (59.7) .795 (20.2) 2.240 (56.9) 02 02
10 11 .966 (24.5) 2.410 (61.2) .820 (20.8) 2.270 (57.7) 03 03
12 13 1.026 (26.1) 2.470 (62.7) .844 (21.4) 2.290 (58.2) 04 04
14 15 1.076 (27.3) 2.540 (64.5) .861 (21.9) 2.320 (58.9) 05 05
16 17 1.136 (28.9) 2.600 (66.0) .888 (22.6) 2.340 (59.4) 06 06
18 19 1.176 (29.9) 2.620 (66.5) .904 (23.0) 2.350 (59.7) 06 07
20 21 1.236 (31.4) 2.680 (68.1) .929 (23.6) 2.370 (60.2) 07 08
22 23 1.296 (32.9) 2.760 (70.1) .956 (24.3) 2.410 (61.2) 08 09
24 25 1.356 (34.4) 2.830 (71.9) .979 (24.9) 2.440 (62.0) 09 10
TABLE IV: CABLE ENTRY
Dash E F G H J Cable Range
No. Entry Max Max Max Max Min Max
02 .250 (6.4) .545 (13.8) .650 (16.5) .044 (1.1) .968 (24.6) .125 (3.2) .250 (6.4)
03 .370 (9.4) .670 (17.0) .774 (19.7) .044 (1.1) 1.046 (26.6) .250 (6.4) .375 (9.5)
04 .500 (12.7) .795 (20.2) .963 (24.5) .044 (1.1) 1.156 (29.4) .375 (9.5) .500 (12.7)
05 .620 (15.7) .920 (23.4) 1.042 (26.5) .044 (1.1) 1.218 (30.9) .500 (12.7) .625 (15.9)
06 .750 (19.1) 1.045 (26.5) 1.217 (30.9) .069 (1.8) 1.343 (34.1) .625 (15.9) .750 (19.1)
07 .870 (22.1) 1.170 (29.7) 1.355 (34.4) .069 (1.8) 1.468 (37.3) .750 (19.1) .875 (22.2)
08 1.000 (25.4) 1.295 (32.9) 1.443 (36.7) .069 (1.8) 1.593 (40.5) .875 (22.2) 1.000 (25.4)
09 1.120 (28.4) 1.420 (36.1) 1.709 (43.4) .069 (1.8) 1.718 (43.6) .937 (23.8) 1.125 (28.6)
10 1.250 (31.8) 1.670 (42.4) 1.919 (48.7) .069 (1.8) 1.843 (46.8) 1.062 (27.0) 1.250 (31.8)
1. Use with Glenair 600-052 bands and 600-058 standard or 600-067 pneumatic banding tools.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. When max entry code per Table III is exceeded, Style II will be supplied.
5. -445 modification not available for MIL-DTL-38999 Series II.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
