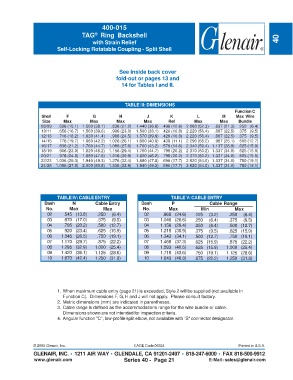

Page 369 - Circular Connector Backshells and Accessories

400-015
TAG Ring Backshell
®
with Strain Relief 40
Self-Locking Rotatable Coupling - Split Shell

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE III: DIMENSIONS
Function C
Shell F G H J K L M Max Wire
Size Max Max Max Max Ref Max Max Bundle
08/09 .596 (15.1) 1.500 (38.1) .836 (21.2) 1.440 (36.6) .496 (12.6) 2.060 (52.3) .837 (21.3) .250 (6.4)
10/11 .656 (16.7) 1.560 (39.6) .906 (23.0) 1.500 (38.1) .426 (10.8) 2.220 (56.4) .887 (22.5) .375 (9.5)
12/13 .716 (18.2) 1.630 (41.4) .966 (24.5) 1.570 (39.9) .426 (10.8) 2.220 (56.4) .887 (22.5) .375 (9.5)
14/15 .776 (19.7) 1.660 (42.2) 1.026 (26.1) 1.600 (40.6) .436 (11.1) 2.290 (58.2) .987 (25.1) .500 (12.7)
16/17 .836 (21.2) 1.760 (44.7) 1.086 (27.6) 1.700 (43.2) .576 (14.6) 2.340 (59.4) 1.137 (28.9) .625 (15.9)
18/19 .906 (23.0) 1.820 (46.2) 1.156 (29.4) 1.760 (44.7) .796 (20.2) 2.370 (60.2) 1.337 (34.0) .625 (15.9)
20/21 .976 (24.8) 1.880 (47.8) 1.216 (30.9) 1.820 (46.2) .796 (20.2) 2.370 (60.2) 1.337 (34.0) .625 (15.9)
22/23 1.036 (26.3) 1.940 (49.3) 1.276 (32.4) 1.880 (47.8) .696 (17.7) 2.520 (64.0) 1.337 (34.0) .750 (19.1)
24/25 1.096 (27.8) 2.000 (50.8) 1.336 (33.9) 1.940 (49.3) .696 (17.7) 2.520 (64.0) 1.337 (34.0) .750 (19.1)

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash N Cable Entry Dash P Cable Range
No. Max Max No. Max Min Max
02 .545 (13.8) .250 (6.4) 02 .968 (24.6) .125 (3.2) .250 (6.4)
03 .670 (17.0) .375 (9.5) 03 1.046 (26.6) .250 (6.4) .375 (9.5)
04 .795 (20.2) .500 (12.7) 04 1.156 (29.4) .250 (6.4) .500 (12.7)
05 .920 (23.4) .625 (15.9) 05 1.218 (30.9) .375 (9.5) .625 (15.9)
06 1.045 (26.5) .750 (19.1) 06 1.343 (34.1) .500 (12.7) .750 (19.1)
07 1.170 (29.7) .875 (22.2) 07 1.468 (37.3) .625 (15.9) .875 (22.2)
08 1.295 (32.9) 1.000 (25.4) 08 1.593 (40.5) .625 (15.9) 1.000 (25.4)
09 1.420 (36.1) 1.125 (28.6) 09 1.718 (43.6) .750 (19.1) 1.125 (28.6)
10 1.670 (42.4) 1.250 (31.8) 10 1.843 (46.8) .875 (22.2) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied (not available in
Function C). Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Angular function "C", low-profile split elbow, not available with "S" connector designator.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 21 E-Mail: sales@glenair.com
