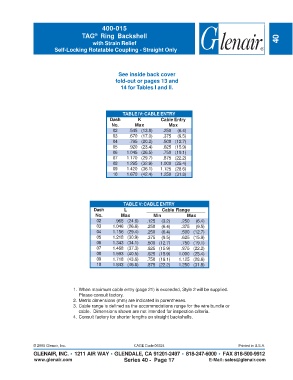

Page 365 - Circular Connector Backshells and Accessories

400-015
TAG Ring Backshell 40
®
with Strain Relief
Self-Locking Rotatable Coupling - Straight Only

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE IV: CABLE ENTRY
Dash K Cable Entry
No. Max Max
02 .545 (13.8) .250 (6.4)
03 .670 (17.0) .375 (9.5)
04 .795 (20.2) .500 (12.7)
05 .920 (23.4) .625 (15.9)
06 1.045 (26.5) .750 (19.1)
07 1.170 (29.7) .875 (22.2)
08 1.295 (32.9) 1.000 (25.4)
09 1.420 (36.1) 1.125 (28.6)
10 1.670 (42.4) 1.250 (31.8)

TABLE V: CABLE ENTRY
Dash L Cable Range
No. Max Min Max
02 .968 (24.6) .125 (3.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5)
04 1.156 (29.4) .250 (6.4) .500 (12.7)
05 1.218 (30.9) .375 (9.5) .625 (15.9)
06 1.343 (34.1) .500 (12.7) .750 (19.1)
07 1.468 (37.3) .625 (15.9) .875 (22.2)
08 1.593 (40.5) .625 (15.9) 1.000 (25.4)
09 1.718 (43.6) .750 (19.1) 1.125 (28.6)
10 1.843 (46.8) .875 (22.2) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 17 E-Mail: sales@glenair.com
