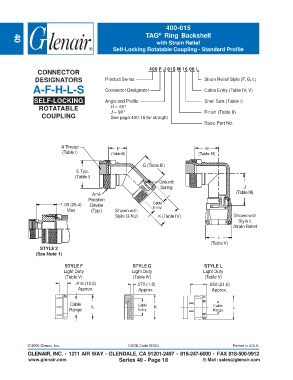

Page 366 - Circular Connector Backshells and Accessories

400-015
TAG Ring Backshell
®
with Strain Relief
40
Self-Locking Rotatable Coupling - Standard Profile

CONNECTOR 400 F J 015 M 16 06 L
DESIGNATORS Product Series Strain Relief Style (F, G, L)
A-F-H-L-S Connector Designator Cable Entry (Table IV, V)

SELF-LOCKING Angle and Profile Shell Size (Table I)
ROTATABLE H = 45° Finish (Table II)
J = 90°
COUPLING See page 400-16 for straight
Basic Part No.

A Thread F H
(Table I) (Table III) (Table III)

G (Table III)
E Typ.
(Table I)
Ground
Spring J
Anti- (Table III)
Rotation
1.00 (25.4) Device Cable
Max (Typ.) Shown with Entry
Style G Nut K (Table IV) Shown with
Style L
Strain Relief

L
(Table V)
STYLE 2
(See Note 1)

STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table V) (Table IV) (Table V)
.416 (10.5) .072 (1.8) .850 (21.6)
Approx. Approx. Approx.

Cable L Cable Cable
Range Entry K Range L

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 18 E-Mail: sales@glenair.com
