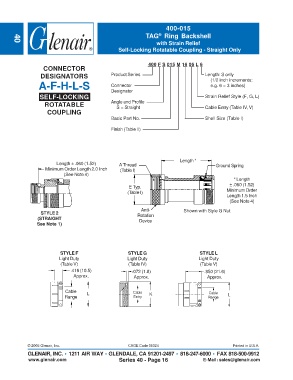

Page 364 - Circular Connector Backshells and Accessories

400-015
®
TAG Ring Backshell
with Strain Relief
40
Self-Locking Rotatable Coupling - Straight Only

400 F S 015 M 16 06 L 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-F-H-L-S Connector e.g. 6 = 3 inches)
Designator
SELF-LOCKING Strain Relief Style (F, G, L)
ROTATABLE Angle and Profile Cable Entry (Table IV, V)
S = Straight
COUPLING
Basic Part No. Shell Size (Table I)

Finish (Table II)

Length *
Length ± .060 (1.52) A Thread Ground Spring
Minimum Order Length 2.0 Inch (Table I)
(See Note 4)
* Length
E Typ. ± .060 (1.52)
(Table I) Minimum Order
Length 1.5 Inch
(See Note 4)
Anti- Shown with Style G Nut
STYLE 2 Rotation
(STRAIGHT Device
See Note 1)

STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table V) (Table IV) (Table V)
.416 (10.5) .072 (1.8) .850 (21.6)
Approx. Approx. Approx.

Cable L Cable Cable
Range Entry K Range L

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 16 E-Mail: sales@glenair.com
