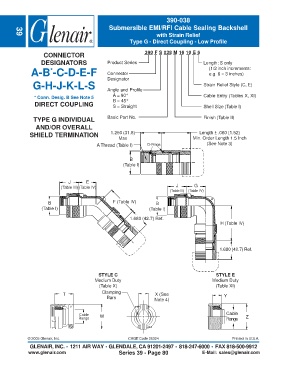

Page 342 - Circular Connector Backshells and Accessories

390-038
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type G - Direct Coupling - Low Profile

CONNECTOR 390 F S 038 M 16 10 E 6
DESIGNATORS Product Series Length: S only
A-B -C-D-E-F Connector (1/2 inch increments:
*
e.g. 6 = 3 inches)
Designator
G-H-J-K-L-S Angle and Profile Strain Relief Style (C, E)

A = 90° Cable Entry (Tables X, XI)
* Conn. Desig. B See Note 5 B = 45°
DIRECT COUPLING S = Straight Shell Size (Table I)

TYPE G INDIVIDUAL Basic Part No. Finish (Table II)
AND/OR OVERALL
SHIELD TERMINATION 1.250 (31.8) Length ± .060 (1.52)
Max Min. Order Length 1.5 Inch
A Thread (Table I) O-Rings (See Note 3)

B
(Table I)

J E
(Table III) (Table IV) J G
(Table III) (Table IV)

B F (Table IV) B
(Table I) (Table I)
1.680 (42.7) Ref.
H (Table IV)

1.680 (42.7) Ref.

STYLE C STYLE E
Medium Duty Medium Duty
(Table X) (Table XI)
T Clamping X (See Y
Bars
Note 4)

Cable W Cable
Range Range Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 80 E-Mail: sales@glenair.com
