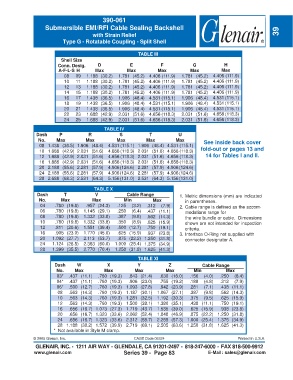

P. 345

390-061
                    Submersible EMI/RFI Cable Sealing Backshell
                                        with Strain Relief                                                           39
                           Type G - Rotatable Coupling - Split Shell

                                                           TABLE III
                           Shell Size
                         Conn. Desig.     D            E            F             G            H
                         A-F-L-S H       Max          Max          Max           Max          Max
                            08   09  1.188 (30.2)  1.781 (45.2)  4.406 (111.9)  1.781 (45.2)  4.406 (111.9)
                            10   11  1.188 (30.2)  1.781 (45.2)  4.406 (111.9)  1.781 (45.2)  4.406 (111.9)
                            12   13  1.188 (30.2)  1.781 (45.2)  4.406 (111.9)  1.781 (45.2)  4.406 (111.9)
                            14   15  1.188 (30.2)  1.781 (45.2)  4.406 (111.9)  1.781 (45.2)  4.406 (111.9)
                            16   17  1.438 (36.5)  1.906 (48.4)  4.531 (115.1)  1.906 (48.4)  4.531 (115.1)
                            18   19  1.438 (36.5)  1.906 (48.4)  4.531 (115.1)  1.906 (48.4)  4.531 (115.1)
                            20   21  1.438 (36.5)  1.906 (48.4)  4.531 (115.1)  1.906 (48.4)  4.531 (115.1)
                            22   23  1.688 (42.9)  2.031 (51.6)  4.656 (118.3)  2.031 (51.6)  4.656 (118.3)
                            24   25  1.688 (42.9)  2.031 (51.6)  4.656 (118.3)  2.031 (51.6)  4.656 (118.3)

                                             TABLE IV
                Dash      P           R            S           T            U
                 No.     Max         Max          Max         Max         Max         See inside back cover
                 08 1.438 (36.5) 1.906 (48.4)  4.531 (115.1) 1.906 (48.4) 4.531 (115.1)
                 10 1.688 (42.9) 2.031 (51.6)  4.656 (118.3) 2.031 (51.6) 4.656 (118.3)  fold-out or pages 13 and
                 12 1.688 (42.9) 2.031 (51.6)  4.656 (118.3) 2.031 (51.6) 4.656 (118.3)  14 for Tables I and II.
                 16 1.688 (42.9) 2.031 (51.6)  4.656 (118.3) 2.031 (51.6) 4.656 (118.3)
                 20 2.188 (55.6) 2.281 (57.9)  4.906(124.6) 2.281 (57.9) 4.906 (124.6)
                 24 2.188 (55.6) 2.281 (57.9)  4.906(124.6) 2.281 (57.9) 4.906 (124.6)
                 28 2.688 (68.3) 2.531 (64.3)  5.156(131.0) 2.531 (64.3) 5.156 (131.0)

                                        TABLE X
                 Dash       T            V            Cable Range           1. Metric dimensions (mm) are indicated
                 No.       Max          Max          Min         Max          in parentheses.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)  2. Cable range is defined as the accom-
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)   modations range for
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.8)  .562 (14.3)   the wire bundle or cable.  Dimensions
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)   shown are not intended for inspection
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)   criteria.
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)  3. Interface O-Ring not supplied with
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   connector designator A.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)

                                                           TABLE XI
                        Dash     W            X            Y           Z              Cable Range
                         No.    Max          Max         Max          Max         Min          Max
                         03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                         04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                         06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                         08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.8)  .562 (14.3)
                         10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                         12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                         16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                         20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                         24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                         28 1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                       *  Not available in Style M clamp.

               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 39 -  Page 83               E-Mail: sales@glenair.com
