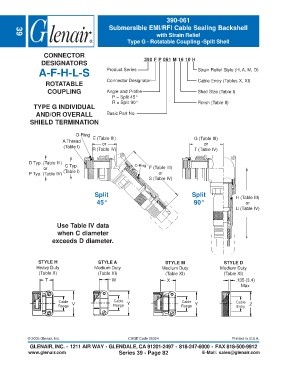

Page 344 - Circular Connector Backshells and Accessories

390-061
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type G - Rotatable Coupling -Split Shell

CONNECTOR
DESIGNATORS 390 F P 061 M 16 10 H
A-F-H-L-S Product Series Strain Relief Style (H, A, M, D)

Connector Designator Cable Entry (Tables X, XI)
ROTATABLE
COUPLING Angle and Profile Shell Size (Table I)
P = Split 45°
R = Split 90° Finish (Table II)
TYPE G INDIVIDUAL
AND/OR OVERALL Basic Part No.
SHIELD TERMINATION

O-Ring
A Thread E (Table III) G (Table III)
or
(Table I) or
R (Table IV) T (Table IV)

D Typ. (Table III) C Typ.
or O-Ring F (Table III)
P Typ. (Table IV) (Table I) or
S (Table IV)

Split Split H (Table III)
45° 90° or
U (Table IV)

Use Table IV data
when C diameter
exceeds D diameter.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 82 E-Mail: sales@glenair.com
