Page 338 - Circular Connector Backshells and Accessories

390-035

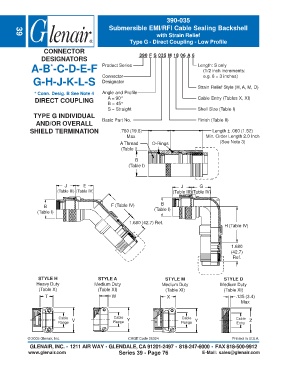

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type G - Direct Coupling - Low Profile
CONNECTOR
DESIGNATORS 390 F S 035 M 18 06 A 6
A-B -C-D-E-F Product Series Length: S only
*
(1/2 inch increments:
G-H-J-K-L-S Connector e.g. 6 = 3 inches)
Designator
Strain Relief Style (H, A, M, D)
* Conn. Desig. B See Note 4 Angle and Profile
DIRECT COUPLING A = 90° Cable Entry (Tables X, XI)
B = 45°
S = Straight Shell Size (Table I)
TYPE G INDIVIDUAL
AND/OR OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION .780 (19.8) Length ± .060 (1.52)
Max Min. Order Length 2.0 Inch
A Thread O-Rings (See Note 3)
(Table I)

B
(Table I)

J E J G
(Table III) (Table IV) (Table III)(Table IV)

B F (Table IV) B
(Table I) (Table I)

1.680 (42.7) Ref.
H (Table IV)

1.680
(42.7)
Ref.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Cable
Range Range Range Y Entry Z
