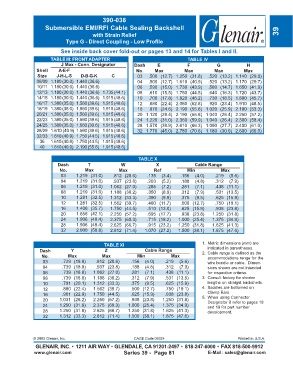

390-038
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type G - Direct Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: FRONT ADAPTER TABLE IV
J Max - Conn. Designator Dash E F G H
Shell A-E-F No. Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .500 (12.7) 1.250 (31.8) .520 (13.2) 1.140 (29.0)
08/09 1.180 (30.0) 1.440 (36.6) 04 .500 (12.7) 1.610 (40.9) .520 (13.2) 1.170 (29.7)
10/11 1.180 (30.0) 1.440 (36.6) 06 .590 (15.0) 1.730 (43.9) .580 (14.7) 1.650 (41.9)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .610 (15.5) 1.750 (44.5) .640 (16.3) 1.720 (43.7)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .700 (17.8) 1.820 (46.2) .730 (18.5) 1.800 (45.7)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .880 (22.4) 2.080 (52.8) .920 (23.4) 1.910 (48.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 .970 (24.6) 2.190 (55.6) 1.020 (25.9) 2.100 (53.3)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 1.120 (28.4) 2.190 (55.6) 1.040 (26.4) 2.250 (57.2)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 24 1.220 (31.0) 2.360 (59.9) 1.040 (26.4) 2.300 (58.4)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 28 1.570 (39.9) 2.610 (66.3) 1.090 (27.7) 2.400 (61.0)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 32 1.770 (45.0) 2.780 (70.6) 1.180 (30.0) 2.600 (66.0)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6)

TABLE X
Dash T W X Cable Range
No. Max Max Ref Min Max
03 1.219 (31.0) .812 (20.6) .135 (3.4) .156 (4.0) .219 (5.6)
04 1.219 (31.0) .937 (23.8) .203 (5.2) .188 (4.8) .312 (7.9)
06 1.219 (31.0) 1.062 (27.0) .285 (7.2) .281 (7.1) .438 (11.1)
08 1.219 (31.0) 1.188 (30.2) .350 (8.9) .312 (7.9) .531 (13.5)
10 1.281 (32.5) 1.312 (33.3) .390 (9.9) .375 (9.5) .625 (15.9)
12 1.281 (32.5) 1.562 (39.7) .460 (11.7) .500 (12.7) .750 (19.1)
16 1.406 (35.7) 1.750 (44.5) .510 (13.0) .625 (15.9) .938 (23.8)
20 1.656 (42.1) 2.250 (57.2) .695 (17.7) .938 (23.8) 1.250 (31.8)
24 1.906 (48.4) 2.375 (60.3) .715 (18.2) 1.000 (25.4) 1.375 (34.9)
28 1.906 (48.4) 2.625 (66.7) .915 (23.2) 1.250 (31.8) 1.625 (41.3)
32 2.000 (50.8) 2.812 (71.4) 1.070 (27.2) 1.500 (38.1) 1.875 (47.6)

TABLE XI 1. Metric dimensions (mm) are
indicated in parentheses.
Dash Y Z Cable Range 2. Cable range is defined as the
No. Max Max Min Max accommodations range for the
03 .739 (18.8) .812 (20.6) .156 (4.0) .219 (5.6) wire bundle or cable. Dimen-
04 .739 (18.8) .937 (23.8) .188 (4.8) .312 (7.9) sions shown are not intended
06 .739 (18.8) 1.062 (27.0) .281 (7.1) .438 (11.1) for inspection criteria.
08 .739 (18.8) 1.188 (30.2) .312 (7.9) .531 (13.5) 3. Consult factory for shorter
10 .791 (20.1) 1.312 (33.3) .375 (9.5) .625 (15.9) lengths on straight backshells.
12 .880 (22.4) 1.562 (39.7) .500 (12.7) .750 (19.1) 4. Saddles are bottomed on
Clamp Ears.
16 .901 (22.9) 1.750 (44.5) .625 (15.9) .938 (23.8) 5. When using Connector
20 1.031 (26.2) 2.250 (57.2) .938 (23.8) 1.250 (31.8) Designator B refer to pages 18
24 1.250 (31.8) 2.375 (60.3) 1.000 (25.4) 1.375 (34.9) and 19 for part number
28 1.250 (31.8) 2.625 (66.7) 1.250 (31.8) 1.625 (41.3) development.
32 1.312 (33.3) 2.812 (71.4) 1.500 (38.1) 1.875 (47.6)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 81 E-Mail: sales@glenair.com
