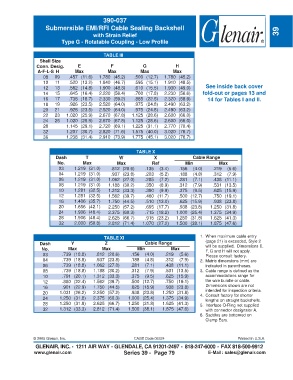

Page 341 - Circular Connector Backshells and Accessories
P. 341
390-037
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type G - Rotatable Coupling - Low Profile
TABLE III
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.780 (45.2) .500 (12.7) 1.780 (45.2)
10 11 .520 (13.2) 1.840 (46.7) .595 (15.1) 1.910 (48.5)
12 13 .582 (14.8) 1.900 (48.3) .610 (15.5) 1.930 (49.0) See inside back cover
14 15 .645 (16.4) 2.220 (56.4) .700 (17.8) 2.230 (56.6) fold-out or pages 13 and
16 17 .738 (18.7) 2.330 (59.2) .885 (22.5) 2.320 (58.9) 14 for Tables I and II.
18 19 .926 (23.5) 2.520 (64.0) .975 (24.8) 2.490 (63.2)
20 21 .926 (23.5) 2.520 (64.0) .975 (24.8) 2.490 (63.2)
22 23 1.020 (25.9) 2.670 (67.8) 1.125 (28.6) 2.600 (66.0)
24 25 1.020 (25.9) 2.670 (67.8) 1.125 (28.6) 2.600 (66.0)
28 1.145 (29.1) 2.720 (69.1) 1.225 (31.1) 2.770 (70.4)
32 1.207 (30.7) 2.820 (71.6) 1.575 (40.0) 3.020 (76.7)
36 1.238 (31.4) 2.910 (73.9) 1.775 (45.1) 3.020 (76.7)
TABLE X
Dash T W X Cable Range
No. Max Max Ref Min Max
03 1.219 (31.0) .812 (20.6) .135 (3.4) .156 (4.0) .219 (5.6)
04 1.219 (31.0) .937 (23.8) .203 (5.2) .188 (4.8) .312 (7.9)
06 1.219 (31.0) 1.062 (27.0) .285 (7.2) .281 (7.1) .438 (11.1)
08 1.219 (31.0) 1.188 (30.2) .350 (8.9) .312 (7.9) .531 (13.5)
10 1.281 (32.5) 1.312 (33.3) .390 (9.9) .375 (9.5) .625 (15.9)
12 1.281 (32.5) 1.562 (39.7) .460 (11.7) .500 (12.7) .750 (19.1)
16 1.406 (35.7) 1.750 (44.5) .510 (13.0) .625 (15.9) .938 (23.8)
20 1.656 (42.1) 2.250 (57.2) .695 (17.7) .938 (23.8) 1.250 (31.8)
24 1.906 (48.4) 2.375 (60.3) .715 (18.2) 1.000 (25.4) 1.375 (34.9)
28 1.906 (48.4) 2.625 (66.7) .915 (23.2) 1.250 (31.8) 1.625 (41.3)
32 2.000 (50.8) 2.812 (71.4) 1.070 (27.2) 1.500 (38.1) 1.875 (47.6)
TABLE XI 1. When maximum cable entry
Dash Y Z Cable Range (page 21) is exceeded, Style 2
will be supplied. Dimensions E,
No. Max Max Min Max F, G and H will not apply.
03 .739 (18.8) .812 (20.6) .156 (4.0) .219 (5.6) Please consult factory.
04 .739 (18.8) .937 (23.8) .188 (4.8) .312 (7.9) 2. Metric dimensions (mm) are
06 .739 (18.8) 1.062 (27.0) .281 (7.1) .438 (11.1) indicated in parentheses.
08 .739 (18.8) 1.188 (30.2) .312 (7.9) .531 (13.5) 3. Cable range is defined as the
10 .791 (20.1) 1.312 (33.3) .375 (9.5) .625 (15.9) accommodations range for
12 .880 (22.4) 1.562 (39.7) .500 (12.7) .750 (19.1) the wire bundle or cable.
16 .901 (22.9) 1.750 (44.5) .625 (15.9) .938 (23.8) Dimensions shown are not
20 1.031 (26.2) 2.250 (57.2) .938 (23.8) 1.250 (31.8) intended for inspection criteria.
24 1.250 (31.8) 2.375 (60.3) 1.000 (25.4) 1.375 (34.9) 4. Consult factory for shorter
lengths on straight backshells.
28 1.250 (31.8) 2.625 (66.7) 1.250 (31.8) 1.625 (41.3) 5. Interface O-Ring not supplied
32 1.312 (33.3) 2.812 (71.4) 1.500 (38.1) 1.875 (47.6) with connector designator A.
6. Saddles are bottomed on
Clamp Ears.
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 79 E-Mail: sales@glenair.com
