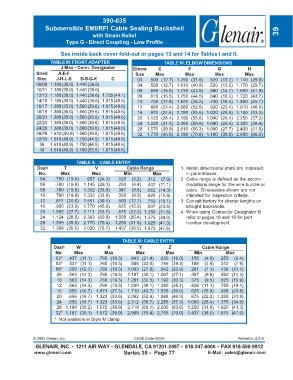

Page 339 - Circular Connector Backshells and Accessories

390-035
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type G - Direct Coupling - Low Profile

See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .500 (12.7) 1.250 (31.8) .520 (13.2) 1.140 (29.0)
08/09 1.180 (30.0) 1.440 (36.6) 04 .500 (12.7) 1.610 (40.9) .520 (13.2) 1.170 (29.7)
10/11 1.180 (30.0) 1.440 (36.6) 06 .590 (15.0) 1.730 (43.9) .580 (14.7) 1.650 (41.9)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .610 (15.5) 1.750 (44.5) .640 (16.3) 1.720 (43.7)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .700 (17.8) 1.820 (46.2) .730 (18.5) 1.800 (45.7)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .880 (22.4) 2.080 (52.8) .920 (23.4) 1.910 (48.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 .970 (24.6) 2.190 (55.6) 1.020 (25.9) 2.100 (53.3)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 1.120 (28.4) 2.190 (55.6) 1.040 (26.4) 2.250 (57.2)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 24 1.220 (31.0) 2.360 (59.9) 1.040 (26.4) 2.300 (58.4)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 28 1.570 (39.9) 2.610 (66.3) 1.090 (27.7) 2.400 (61.0)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 32 1.770 (45.0) 2.780 (70.6) 1.180 (30.0) 2.600 (66.0)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6)

TABLE X: : CABLE ENTRY
Dash T V Cable Range 1. Metric dimensions (mm) are indicated
No. Max Max Min Max in parentheses.
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) 2. Cable range is defined as the accom-
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) modations range for the wire bundle or
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) cable. Dimensions shown are not
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) intended for inspection criteria.
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 3. Consult factory for shorter lengths on
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) straight backshells.
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) 4. When using Connector Designator B
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) refer to pages 18 and 19 for part
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) number development.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
* Not available in Style M clamp.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 77 E-Mail: sales@glenair.com
