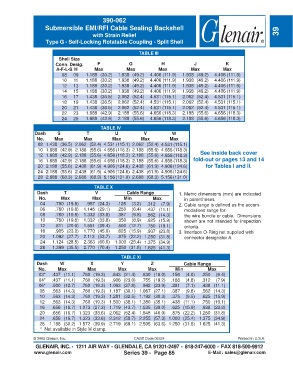

P. 347

390-062
                    Submersible EMI/RFI Cable Sealing Backshell
                                        with Strain Relief                                                           39
                    Type G - Self-Locking Rotatable Coupling - Split Shell

                                                           TABLE III
                          Shell Size
                        Conn. Desig.      F            G            H             J            K
                         A-F-L-S H       Max          Max          Max           Max          Max
                           08   09   1.188 (30.2)  1.938 (49.2)  4.406 (111.9)  1.938 (49.2)  4.406 (111.9)
                           10   11   1.188 (30.2)  1.938 (49.2)  4.406 (111.9)  1.938 (49.2)  4.406 (111.9)
                           12   13   1.188 (30.2)  1.938 (49.2)  4.406 (111.9)  1.938 (49.2)  4.406 (111.9)
                           14   15   1.188 (30.2)  1.938 (49.2)  4.406 (111.9)  1.938 (49.2)  4.406 (111.9)
                           16   17   1.438 (36.5)  2.062 (52.4)  4.531 (115.1)  2.062 (52.4)  4.531 (115.1)
                           18   19   1.438 (36.5)  2.062 (52.4)  4.531 (115.1)  2.062 (52.4)  4.531 (115.1)
                           20   21   1.438 (36.5)  2.062 (52.4)  4.531 (115.1)  2.062 (52.4)  4.531 (115.1)
                           22   23   1.688 (42.9)  2.188 (55.6)  4.656 (118.3)  2.188 (55.6)  4.656 (118.3)
                           24   25   1.688 (42.9)  2.188 (55.6)  4.656 (118.3)  2.188 (55.6)  4.656 (118.3)

                                           TABLE IV
                Dash     S           T           U           V           W
                No.     Max         Max         Max         Max         Max
                 08 1.438 (36.5) 2.062 (52.4)  4.531 (115.1) 2.062 (52.4) 4.531 (115.1)
                 10 1.688 (42.9) 2.188 (55.6)  4.656 (118.3) 2.188 (55.6) 4.656 (118.3)
                 12 1.688 (42.9) 2.188 (55.6)  4.656 (118.3) 2.188 (55.6) 4.656 (118.3)  See inside back cover
                 16 1.688 (42.9) 2.188 (55.6)  4.656 (118.3) 2.188 (55.6) 4.656 (118.3)  fold-out or pages 13 and 14
                 20 2.188 (55.6) 2.438 (61.9)  4.906(124.6) 2.438 (61.9) 4.906(124.6)  for Tables I and II.
                 24 2.188 (55.6) 2.438 (61.9)  4.906(124.6) 2.438 (61.9) 4.906(124.6)
                 28 2.688 (68.3) 2.688 (68.3)  5.156(131.0) 2.688 (68.3) 5.156(131.0)
                                        TABLE X
                 Dash       T            V            Cable Range           1. Metric dimensions (mm) are indicated
                 No.       Max          Max          Min         Max          in parentheses.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)  2. Cable range is defined as the accom-
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)   modations range for
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.8)  .562 (14.3)   the wire bundle or cable.  Dimensions
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)   shown are not intended for inspection
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)   criteria.
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)  3. Interface O-Ring not supplied with
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   connector designator A.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                                                    TABLE XI
                Dash      W            X            Y           Z             Cable Range
                 No.     Max          Max         Max          Max        Min           Max
                 03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                 04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                 06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                  08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.8)  .562 (14.3)
                  10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                  12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                  16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                  20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                  24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                  28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                  *  Not available in Style M clamp.

               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 39 -  Page 85               E-Mail: sales@glenair.com
