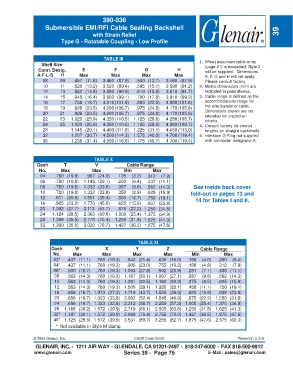

Page 337 - Circular Connector Backshells and Accessories

390-036
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type G - Rotatable Coupling - Low Profile

TABLE III
Shell Size 1. When maximum cable entry
(page 21) is exceeded, Style 2
Conn. Desig. E F G H will be supplied. Dimensions
A-F-L-S H Max Max Max Max E, F, G and H will not apply.
08 09 .457 (11.6) 3.460 (87.9) .500 (12.7) 3.460 (87.9) Please consult factory.
10 11 .520 (13.2) 3.520 (89.4) .595 (15.1) 3.590 (91.2) 2. Metric dimensions (mm) are
12 13 .582 (14.8) 3.580 (90.9) .610 (15.5) 3.610 (91.7) indicated in parentheses.
14 15 .645 (16.4) 3.900 (99.1) .700 (17.8) 3.910 (99.3) 3. Cable range is defined as the
16 17 .738 (18.7) 4.010(101.9) .885 (22.5) 4.000(101.6) accommodations range for
18 19 .926 (23.5) 4.200(106.7) .975 (24.8) 4.170(105.9) the wire bundle or cable.
20 21 .926 (23.5) 4.200(106.7) .975 (24.8) 4.170(105.9) Dimensions shown are not
intended for inspection
22 23 1.020 (25.9) 4.350 (110.5) 1.125 (28.6) 4.280(108.7) criteria.
24 25 1.020 (25.9) 4.350 (110.5) 1.125 (28.6) 4.280(108.7) 4. Consult factory for shorter
28 1.145 (29.1) 4.400 (111.8) 1.225 (31.1) 4.450 (113.0) lengths on straight backshells.
32 1.207 (30.7) 4.500 (114.3) 1.575 (40.0) 4.700 (119.4) 5. Interface O-Ring not supplied
36 1.238 (31.4) 4.590 (116.6) 1.775 (45.1) 4.700 (119.4) with connector designator A.

TABLE X
Dash T V Cable Range
No. Max Max Min Max
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9)
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1)
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) See inside back cover
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) fold-out or pages 13 and
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 14 for Tables I and II.
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)

TABLE XI
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 75 E-Mail: sales@glenair.com
