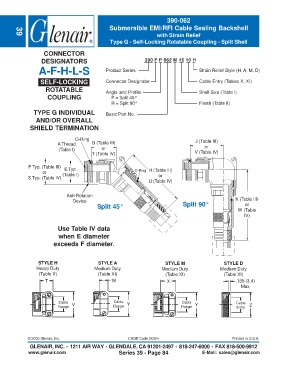

Page 346 - Circular Connector Backshells and Accessories

390-062
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type G - Self-Locking Rotatable Coupling - Split Shell

CONNECTOR
DESIGNATORS 390 F P 062 M 16 10 H
A-F-H-L-S Product Series Strain Relief Style (H, A, M, D)

SELF-LOCKING Connector Designator Cable Entry (Tables X, XI)
ROTATABLE Angle and Profile Shell Size (Table I)
COUPLING P = Split 45°
R = Split 90° Finish (Table II)
TYPE G INDIVIDUAL Basic Part No.
AND/OR OVERALL
SHIELD TERMINATION

O-Ring J (Table III)
A Thread G (Table III) or
(Table I) or
T (Table IV) V (Table IV)

F Typ. (Table III) E Typ.
or (Table I) O-Ring H (Table III)
S Typ. (Table IV) or
U (Table IV)

Anti-Rotation
Device K (Table III)
Split 45° Split 90° or
W (Table
IV)

Use Table IV data
when E diameter
exceeds F diameter.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry
