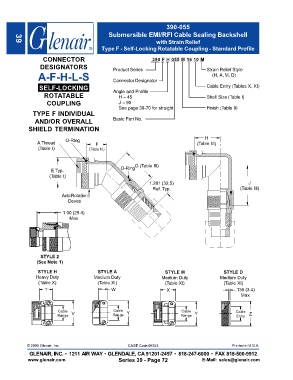

Page 334 - Circular Connector Backshells and Accessories

390-055
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type F - Self-Locking Rotatable Coupling - Standard Profile
CONNECTOR 390 F H 055 M 16 10 M
DESIGNATORS Product Series Strain Relief Style
A-F-H-L-S Connector Designator (H, A, M, D)

SELF-LOCKING Cable Entry (Tables X, XI)
ROTATABLE Angle and Profile Shell Size (Table I)
H = 45°
COUPLING J = 90°
See page 39-70 for straight Finish (Table II)
TYPE F INDIVIDUAL
AND/O OVERALL Basic Part No.
SHIEL TERMINATION

H
A Thread O-Ring F (Tab III)
(T I) (Table III)

E Typ. O-Ring G (Table III)
(T I)
1.281 (32.5) J
Ref. Typ. (Tab III)
Anti-Rotation
Device

1.00 (25.4)
Max

STYLE 2
(See Note 1)
STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENA INC. • 1211 AIR WAY • GLENDA 91201-2497 • 818-247-6000 • FA 818-500-9912
www.glenair.com Series 39 - Page 72 sales@glenair.com
