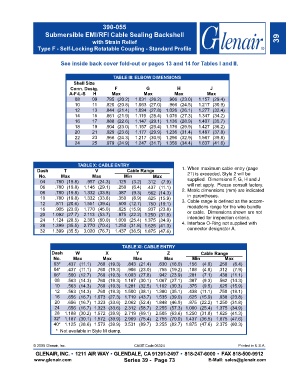

P. 335

390-055
                    Submersible EMI/RFI Cable Sealing Backshell
                                        with Strain Relief                                                            39
                 Type F - Self-Locking Rotatable Coupling - Standard Profile


                          See inside back cover fold-out or pages 13 and 14 for Tables I and II.

                                                TABLE III: ELBOW DIMENSIONS
                                Shell Size
                              Conn  Desig.       F            G            H             J
                              A-F-L-S   H       Max          Max          Max          Max
                                08      09   .795 (20.2)  1.031 (26.2)  .906 (23.0)  1.157 (29.4)
                                10      11   .820 (20.8)  1.063 (27.0)  .966 (24.5)  1.217 (30.9)
                                12      13   .844 (21.4)  1.094 (27.8) 1.026 (26.1)  1.277 (32.4)
                                14      15   .861 (21.9)  1.119 (28.4) 1.076 (27.3)  1.347 (34.2)
                                16      17   .888 (22.6)  1.147 (29.1) 1.136 (28.9)  1.407 (35.7)
                                18      19   .904 (23.0)  1.157 (29.4) 1.176 (29.9)  1.427 (36.2)
                                20      21   .929 (23.6)  1.177 (29.9) 1.236 (31.4)  1.487 (37.8)
                                22      23   .956 (24.3)  1.217 (30.9) 1.296 (32.9)  1.567 (39.8)
                                24      25   .979 (24.9)  1.247 (31.7) 1.356 (34.4)  1.637 (41.6)




                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range            1. When maximum cable entry (page
                 No.       Max          Max          Min         Max           21) is exceeded, Style 2 will be
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)     supplied.  Dimensions F, G, H and J
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)    will not apply.  Please consult factory.
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.3)  .562 (14.3)  2. Metric dimensions (mm) are indicated
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)    in parentheses.
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)  3. Cable range is defined as the accom-
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)    modations range for the wire bundle
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)    or cable.  Dimensions shown are not
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)   intended for inspection criteria.
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  4. Interface O-Ring not supplied with
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)   connector designator A.



                                                    TABLE XI: CABLE ENTRY
                       Dash      W           X            Y            Z             Cable Range
                       No.      Max         Max          Max          Max        Min           Max
                        03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                        04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                        06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.3)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                        32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.437 (36.5)  1.875 (47.6)
                        40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.875 (47.6)  2.375 (60.3)
                        *  Not available in Style M clamp.


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
                GLENA  INC. • 1211 AIR WAY •  GLENDA    91201-2497 •  818-247-6000 •  FA  818-500-9912
               www.glenair.com                       Series 39 -  Page 73                 sales@glenair.com
