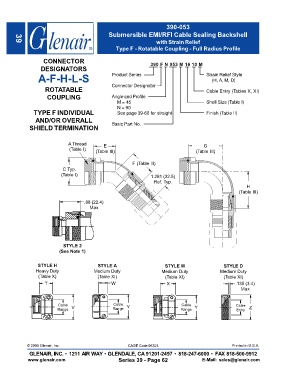

Page 324 - Circular Connector Backshells and Accessories

390-053
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type F - Rotatable Coupling - Full Radius Profile

CONNECTOR
DESIGNATORS 390 F N 053 M 16 10 M
A-F-H-L-S Product Series Strain Relief Style
(H, A, M, D)
ROTATABLE Connector Designator Cable Entry (Tables X, XI)
COUPLING Angle and Profile
M = 45° Shell Size (Table I)
N = 90°
TYPE F INDIVIDUAL See page 39-60 for straight Finish (Table II)
AND/OR OVERALL
SHIELD TERMINATION Basic Part No.

A Thread E G
(T I) (Tab III) (Tab III)

(Tab III)
C Typ.
(T I) 1.281 (32.5)
Ref. Typ.
H
(Tab III)

.88 (22.4)
Max

STYLE 2
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENA INC. • 1211 AIR WAY • GLENDA 91201-2497 • 818-247-6000 • FA 818-500-9912
www.glenair.com Series 39 - Page 62 sales@glenair.com
