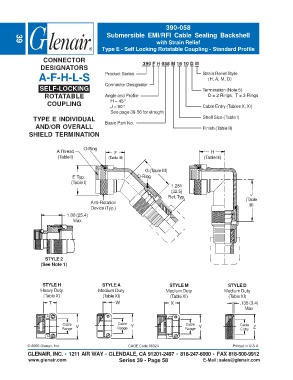

Page 320 - Circular Connector Backshells and Accessories

390-058
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type E - Self Locking Rotatable Coupling - Standard Profile

CONNECTOR 390 F H 058 M 16 10 D M
DESIGNATORS
A-F-H-L-S Product Series Strain Relief Style
(H, A, M, D)
Connector Designator
SELF-LOCKING Termination (Note 5)
ROTATABLE Angle and Profile D = 2 Rings, T = 3 Rings
COUPLING H = 45° Cable Entry (Tables X, XI)
J = 90°
See page 39-56 for straight
TYPE E INDIVIDUAL Basic Part No. Shell Size (Table I)
AND/OR OVERALL Finish (Table II)
SHIELD TERMINATION

O-Ring
A Thread F H
(Table I) (Table III) (Table III)

G (Table III)
E Typ. O-Ring
(Table I)
1.281
(32.5) J
Ref. Typ. (Table
Anti-Rotation III)
Device (Typ.)
1.00 (25.4)
Max

STYLE 2
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 58 E-Mail: sales@glenair.com
