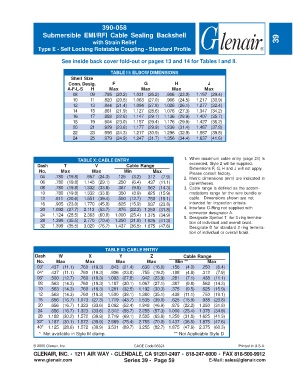

Page 321 - Circular Connector Backshells and Accessories

390-058
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type E - Self Locking Rotatable Coupling - Standard Profile

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. F G H J
A-F-L-S H Max Max Max Max
08 09 .795 (20.2) 1.031 (26.2) .906 (23.0) 1.157 (29.4)
10 11 .820 (20.8) 1.063 (27.0) .966 (24.5) 1.217 (30.9)
12 13 .844 (21.4) 1.094 (27.8) 1.026 (26.1) 1.277 (32.4)
14 15 .861 (21.9) 1.127 (28.6) 1.076 (27.3) 1.347 (34.2)
16 17 .888 (22.6) 1.147 (29.1) 1.136 (28.9) 1.407 (35.7)
18 19 .904 (23.0) 1.157 (29.4) 1.176 (29.9) 1.427 (36.2)
20 21 .929 (23.6) 1.177 (29.9) 1.236 (31.4) 1.487 (37.8)
22 23 .956 (24.3) 1.217 (30.9) 1.296 (32.9) 1.567 (39.8)
24 25 .979 (24.9) 1.247 (31.7) 1.356 (34.4) 1.637 (41.6)

TABLE X: CABLE ENTRY 1. When maximum cable entry (page 21) is
Dash T V Cable Range exceeded, Style 2 will be supplied.
No. Max Max Min Max Dimensions F, G, H and J will not apply.
Please consult factory.
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) 2. Metric dimensions (mm) are indicated in
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) parentheses.
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) 3. Cable range is defined as the accom-
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) modations range for the wire bundle or
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) cable. Dimensions shown are not
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) intended for inspection criteria.
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) 4. Interface O-Ring not supplied with
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) connector designator A.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 5. Designate Symbol T for 3 ring termina-
tion of individual and overall braid.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) Designate D for standard 2 ring termina-
tion of individual or overall braid.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 59 E-Mail: sales@glenair.com
