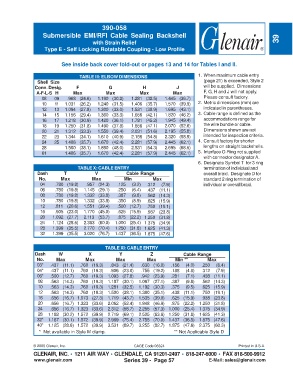

Page 319 - Circular Connector Backshells and Accessories
P. 319

390-058
                   Submersible EMI/RFI Cable Sealing Backshell
                                        with Strain Relief                                                           39
                    Type E - Self Locking Rotatable Coupling - Low Profile


                           See inside back cover fold-out or pages 13 and 14 for Tables I and II.

                                  TABLE III: ELBOW DIMENSIONS                       1. When maximum cable entry
                 Shell Size                                                           (page 21) is exceeded, Style 2
                Conn. Desig.     F            G              H             J          will be supplied.  Dimensions
                A-F-L-S H       Max          Max           Max           Max          F, G, H and J will not apply.
                   08   09   .968 (24.6)  1.190 (30.2)  1.281 (32.5)  1.445 (36.7)    Please consult factory.
                   10   11  1.031 (26.2)  1.240 (31.5)  1.406 (35.7)  1.570 (39.9)  2. Metric dimensions (mm) are
                   12   13  1.094 (27.8)  1.300 (33.0)  1.531 (38.9)  1.695 (43.1)    indicated in parentheses.
                   14   15  1.156 (29.4)  1.360 (33.3)  1.656 (42.1)  1.820 (46.2)  3. Cable range is defined as the
                   16   17  1.218 (30.9)  1.420 (36.1)  1.781 (45.2)  1.945 (49.4)    accommodations range for
                   18   19  1.250 (31.8)  1.490 (37.8)  1.856 (47.1)  2.070 (52.6)    the wire bundle or cable.
                   20   21  1.312 (33.3)  1.550 (39.4)  2.031 (51.6)  2.195 (55.8)    Dimensions shown are not
                   22   23  1.344 (34.1)  1.610 (40.9)  2.156 (54.8)  2.320 (58.9)    intended for inspection criteria.
                   24   25  1.406 (35.7)  1.670 (42.4)  2.281 (57.9)  2.445 (62.1)  4. Consult factory for shorter
                   28       1.500 (38.1)  1.890 (48.0)  2.531 (64.3)  2.695 (68.5)    lengths on straight backshells.
                   61       1.406 (35.7)  1.670 (42.4)  2.281 (57.9)  2.445 (62.1)  5. Interface O-Ring not supplied
                                                                                      with connector designator A.
                                                                                    6. Designate Symbol T  for 3 ring
                                  TABLE X: CABLE ENTRY                                termination of individual and
                 Dash       T            V            Cable Range                     overall braid.  Designate D for
                 No.      Max          Max           Min         Max                  standard 2 ring termination of
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)            individual or overall braid.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.8)  .562 (14.3)
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)


                                             TABLE XI: CABLE ENTRY
                Dash      W           X            Y            Z             Cable Range
                No.      Max         Max          Max         Max         Min **        Max
                 03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                 04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                 06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                 08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.8)  .562 (14.3)
                 10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                 12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                 16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                 20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                 24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                 28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                 32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.437 (36.5)  1.875 (47.6)
                 40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.875 (47.6)  2.375 (60.3)
                 *  Not available in Style M clamp.                                                    ** Not Applicable Style D
