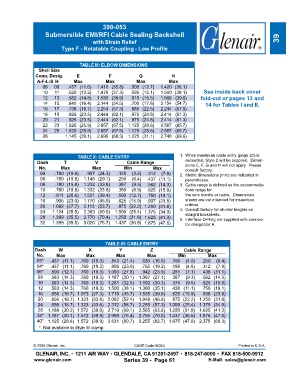

Page 323 - Circular Connector Backshells and Accessories

390-053
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type F - Rotatable Coupling - Low Profile

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.410 (35.8) .500 (12.7) 1.420 (36.1)
10 11 .520 (13.2) 1.470 (37.3) .595 (15.1) 1.540 (39.1) See inside back cover
12 13 .582 (14.8) 1.530 (38.9) .610 (15.5) 1.560 (39.6) fold-out or pages 13 and
14 15 .645 (16.4) 2.144 (54.5) .700 (17.8) 2.154 (54.7) 14 for Tables I and II.
16 17 .738 (18.7) 2.254 (57.3) .885 (22.5) 2.244 (57.0)
18 19 .926 (23.5) 2.444 (62.1) .975 (24.8) 2.414 (61.3)
20 21 .926 (23.5) 2.444 (62.1) .975 (24.8) 2.414 (61.3)
22 23 1.020 (25.9) 2.657 (67.5) 1.125 (28.6) 2.587 (65.7)
24 25 1.020 (25.9) 2.657 (67.5) 1.125 (28.6) 2.587 (65.7)
28 1.145 (29.1) 2.690 (68.3) 1.225 (31.1) 2.740 (69.6)

TABLE X: CABLE ENTRY 1. When maximum cable entry (page 21) is
Dash T V Cable Range exceeded, Style 2 will be supplied. Dimen-
No. Max Max Min Max sions E, F, G and H will not apply. Please
consult factory.
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) 2. Metric dimensions (mm) are indicated in
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) parentheses.
08 .780 (19.8) 1.332 (33.8) .387 (9.3) .562 (14.3) 3. Cable range is defined as the accommoda-
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) tions range for
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) the wire bundle or cable. Dimensions
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) shown are not intended for inspection
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) criteria.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 4. Consult factory for shorter lengths on
straight backshells.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 5. Interface O-Ring not supplied with connec-
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) tor designator A.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.3) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.
