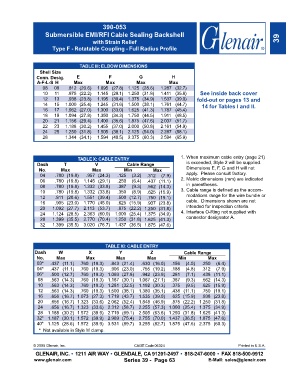

Page 325 - Circular Connector Backshells and Accessories

390-053
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type F - Rotatable Coupling - Full Radius Profile

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .812 (20.6) 1.095 (27.8) 1.125 (28.6) 1.287 (32.7)
10 11 .875 (22.2) 1.145 (29.1) 1.250 (31.8) 1.411 (35.8) See inside back cover
12 13 .938 (23.8) 1.195 (30.4) 1.375 (34.9) 1.537 (39.0) fold-out or pages 13 and
14 15 1.000 (25.4) 1.245 (31.6) 1.500 (38.1) 1.761 (44.7) 14 for Tables I and II.
16 17 1.062 (27.0) 1.300 (33.0) 1.625 (41.3) 1.787 (45.4)
18 19 1.094 (27.8) 1.350 (34.3) 1.750 (44.5) 1.911 (48.5)
20 21 1.156 (29.4) 1.400 (35.6) 1.875 (47.6) 2.037 (51.7)
22 23 1.188 (30.2) 1.455 (37.0) 2.000 (50.8) 2.161 (54.9)
24 25 1.250 (31.8) 1.505 (38.1) 2.125 (54.0) 2.287 (58.1)
28 1.344 (34.1) 1.594 (40.5) 2.375 (60.3) 2.594 (65.9)

TABLE X: CABLE ENTRY 1. When maximum cable entry (page 21)
Dash T V Cable Range is exceeded, Style 2 will be supplied.
No. Max Max Min Max Dimensions E, F, G and H will not
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) apply. Please consult factory.
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) 2. Metric dimensions (mm) are indicated
08 .780 (19.8) 1.332 (33.8) .387 (9.3) .562 (14.3) in parentheses.
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) 3. Cable range is defined as the accom-
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) modations range for the wire bundle or
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) cable. Dimensions shown are not
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) intended for inspection criteria.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 4. Interface O-Ring not supplied with
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) connector designator A.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.3) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 63 E-Mail: sales@glenair.com
