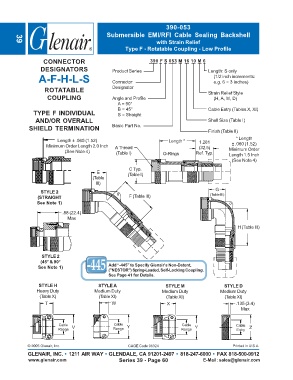

Page 322 - Circular Connector Backshells and Accessories

390-053
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type F - Rotatable Coupling - Low Profile

CONNECTOR 390 F S 053 M 16 10 M 6
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector (1/2 inch increments:
e.g. 6 = 3 inches)
ROTATABLE Designator Strain Relief Style
COUPLING Angle and Profile (H, A, M, D)
A = 90°
B = 45° Cable Entry (Tables X, XI)
TYPE F INDIVIDUAL S = Straight
AND/OR OVERALL Shell Size (Table I)
SHIELD TERMINATION Basic Part No. Finish (Table II)

Length ± .060 (1.52) Length * 1.281 * Length
Minimum Order Length 2.0 Inch A Thread (32.5) ± .060 (1.52)
(See Note 4) (Table I) O-Rings Ref. Typ. Minimum Order
Length 1.5 Inch
(See Note 4)
C Typ.
E (Table I)
(Table
III)
G
STYLE 2
(STRAIGHT F (Table III) (Table III)
See Note 1)

.88 (22.4)
Max
H (Table III)

STYLE 2
(45° & 90°
See Note 1) Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 60 E-Mail: sales@glenair.com
